Removal [10/2022 - ]: Procedure

  1. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [10/2022 - 10/2023] , or refer to REMOVAL [10/2023 - ]

  2. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY

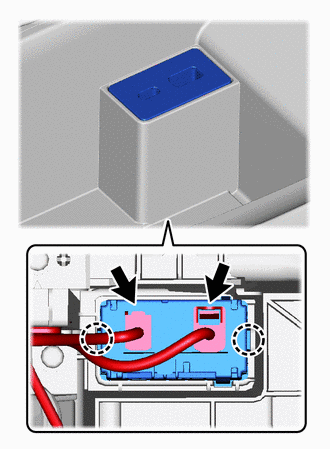

    1. Disconnect the 2 connectors.
      GTY1134281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the claw and remove the No. 1 stereo jack adapter assembly.
