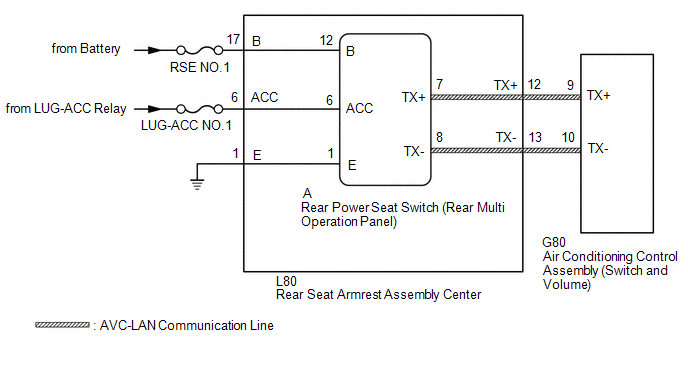

DTC B2672-87: Rear Console Switch Missing Message [10/2022 - ]: Wiring Diagram

GTY1126054

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
