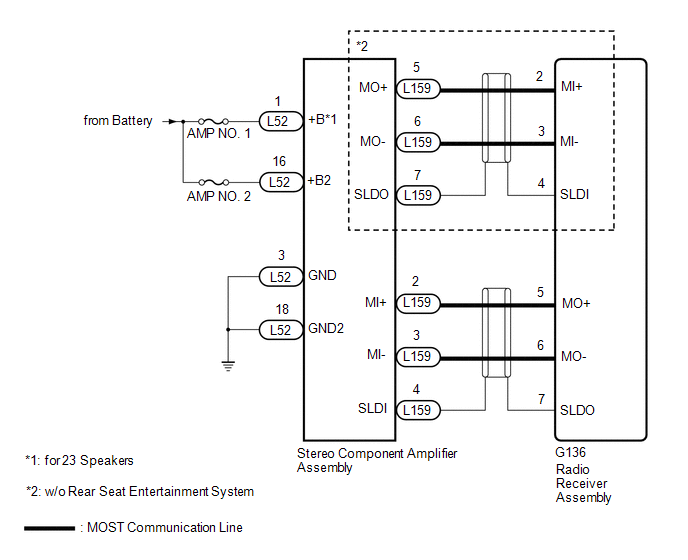

DTC B15D3: Stereo Component Amplifier Disconnected [12/2017 - 10/2022]: Wiring Diagram

GTY812856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
