DTC B15D0: MOST Communication Malfunction [12/2017 - 10/2022]: Wiring Diagram

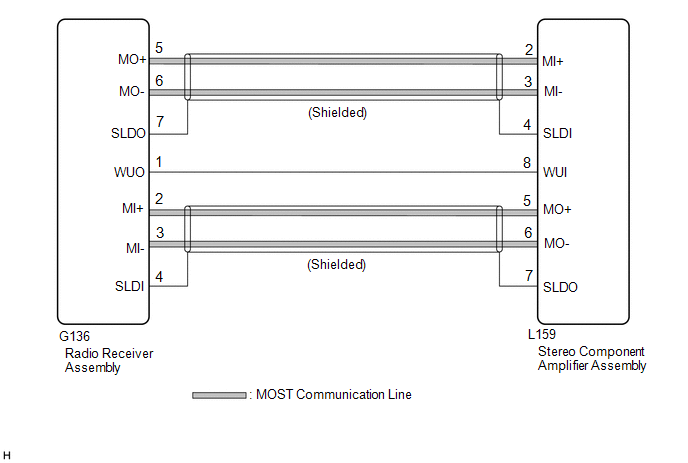

w/o Rear Seat Entertainment System

GTY969837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

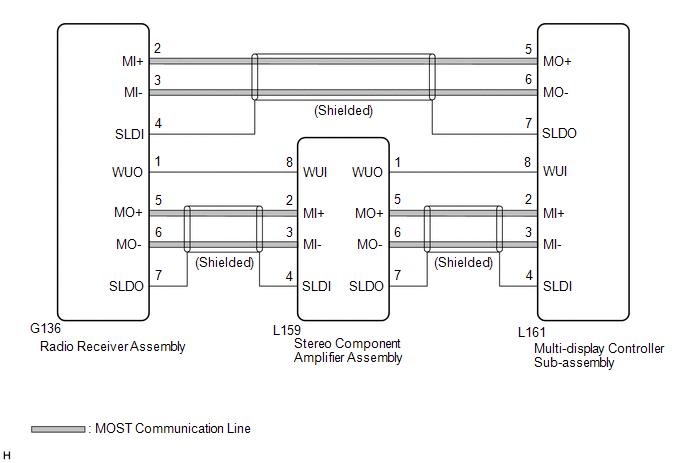

w/ Rear Seat Entertainment System

GTY969892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
