DTC B15C3-71: Speaker Output Short Actuator Stuck [10/2022 - ]: Wiring Diagram

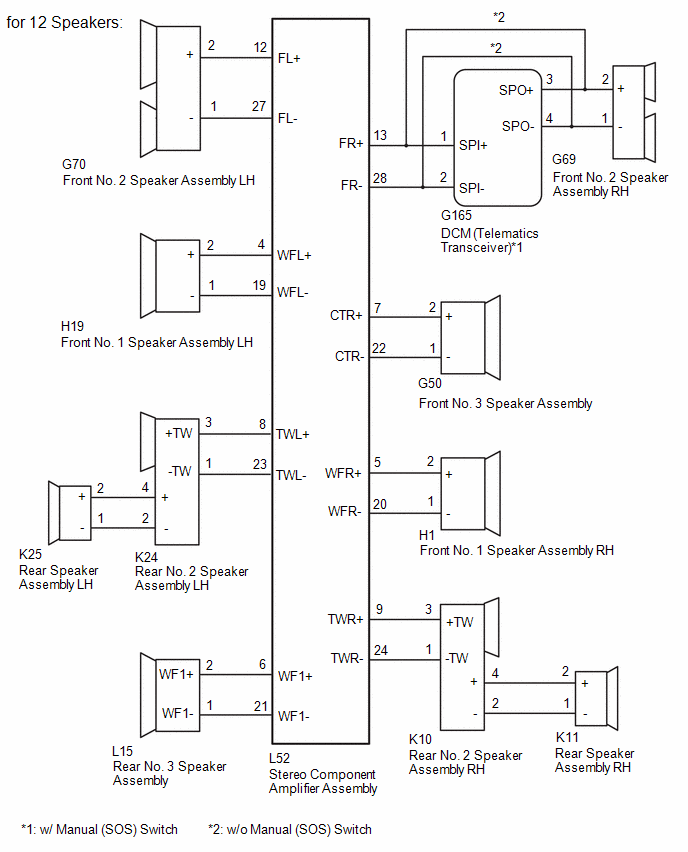

GTY1136578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

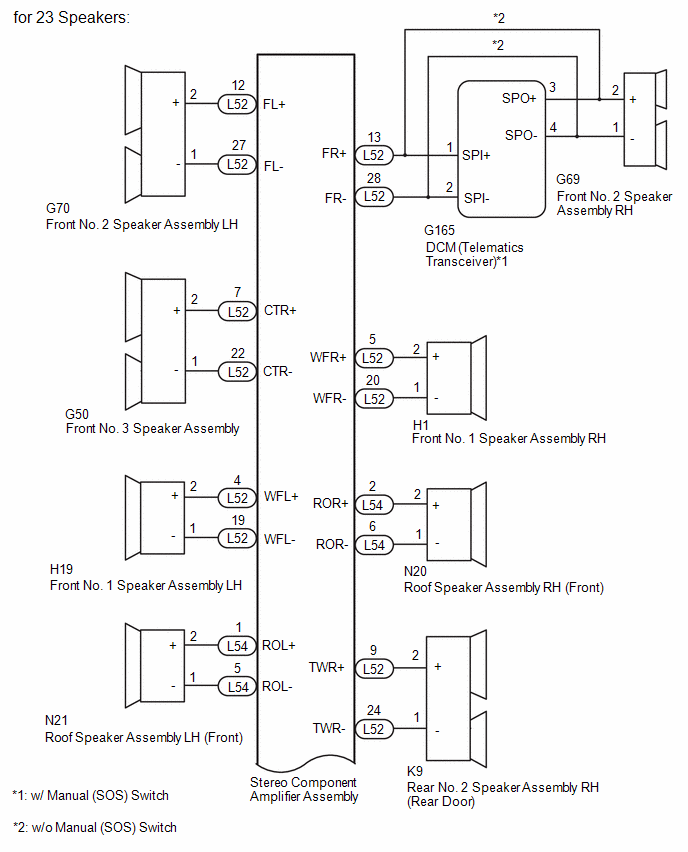

GTY1136030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

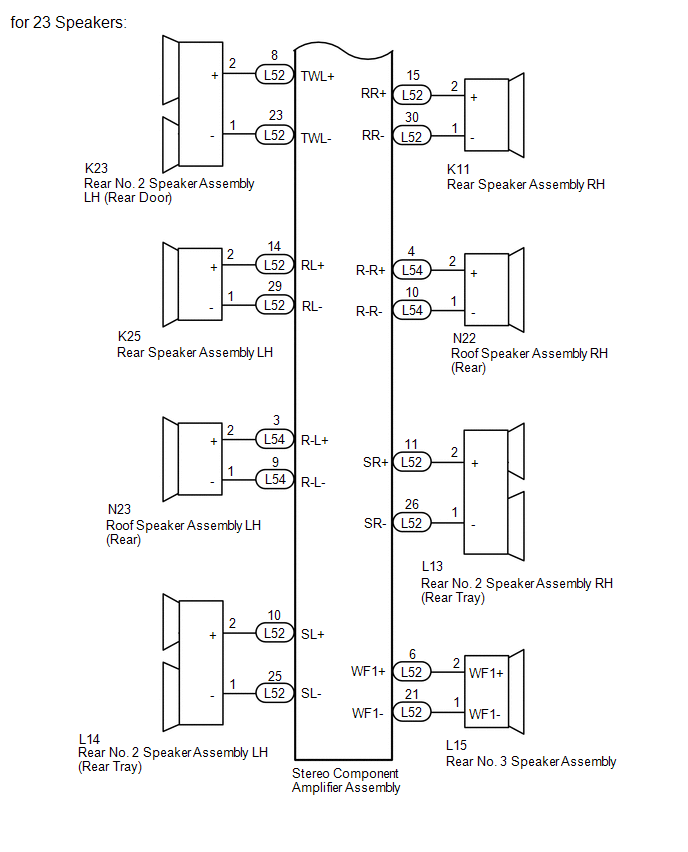

GTY823254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
