DTC B15C3: Speaker Output Short [12/2017 - 10/2020]: Wiring Diagram

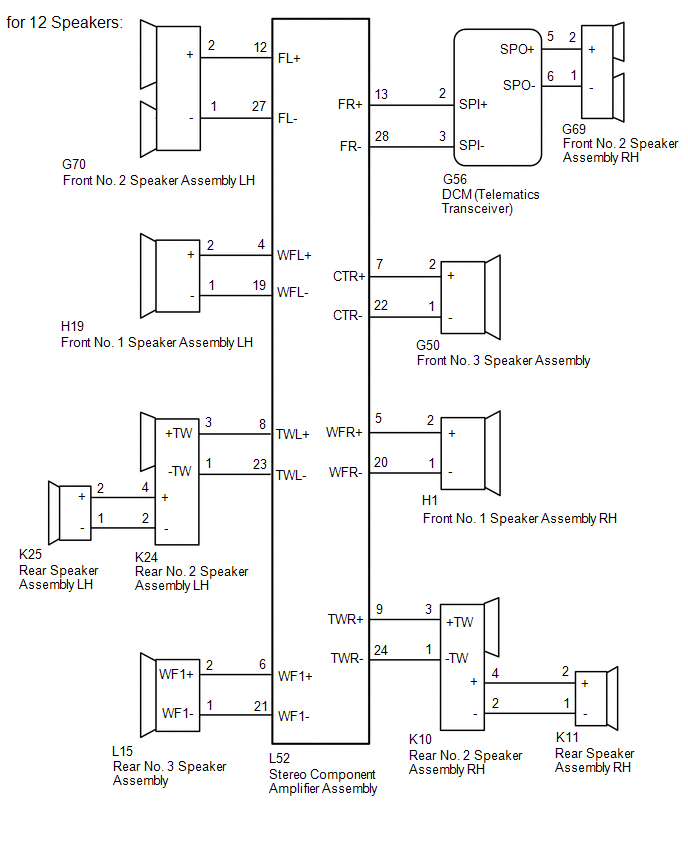

GTY798251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

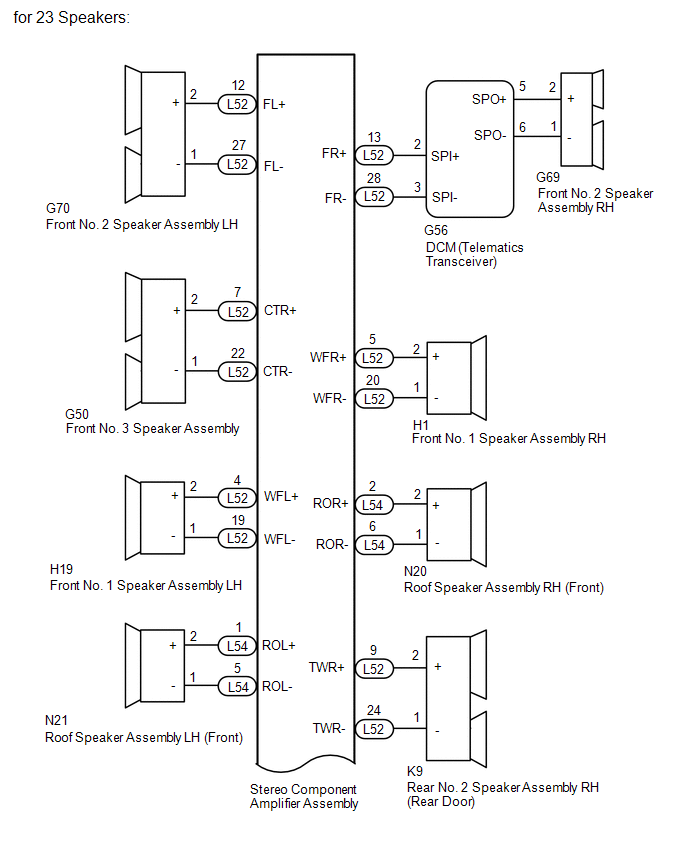

GTY805150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

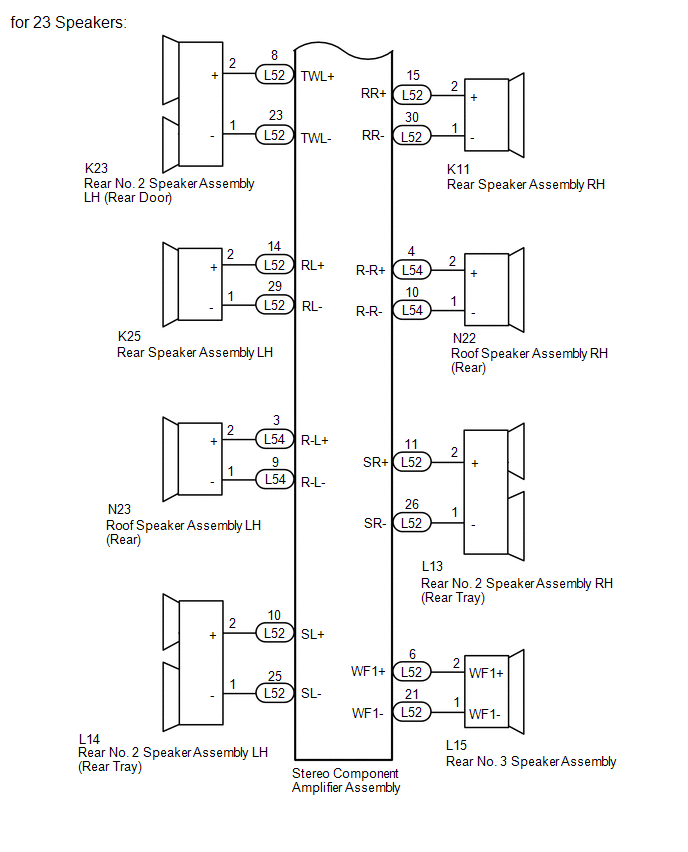

GTY823257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
