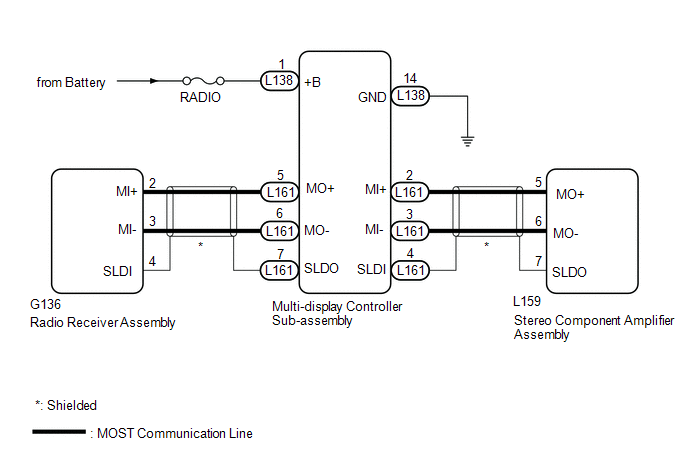

DTC B15A5-87: Rear Seat Entertainment System Missing Message [10/2022 - ]: Wiring Diagram

GTY1123327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
