Audio / Video System - Diagnostic Codes (1 Of 3)
>>
Audio And Visual System
>>
DTC B15A3-87: Stereo Component Amplifier Missing Message [10/2022 - ]
>>
Wiring Diagram

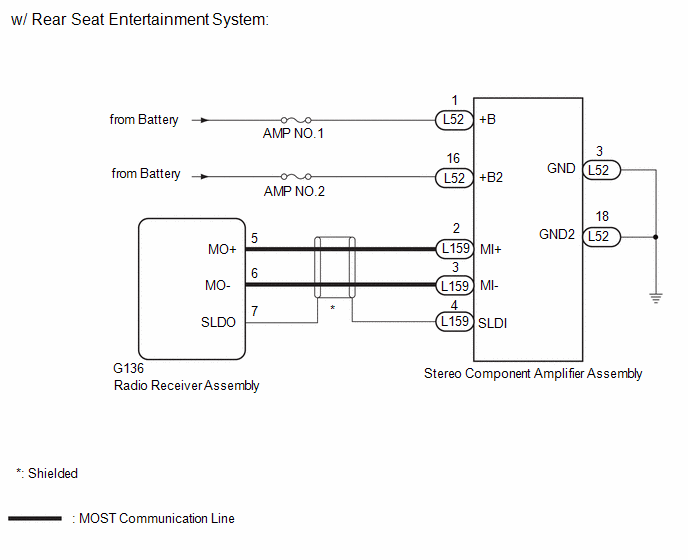

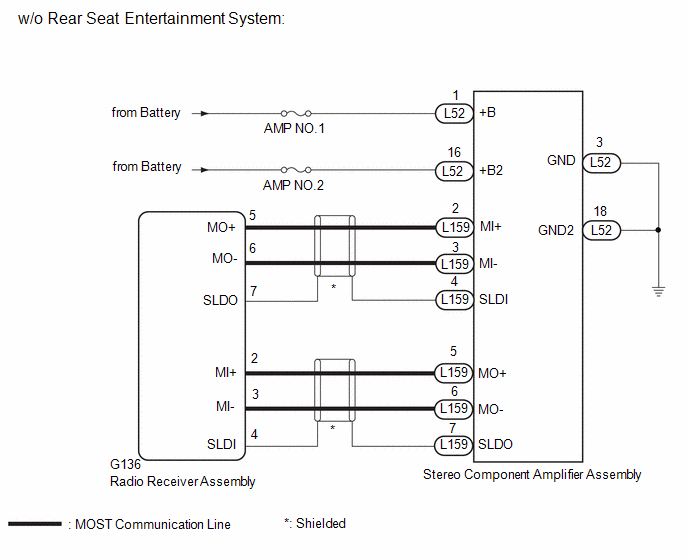

DTC B15A3-87: Stereo Component Amplifier Missing Message [10/2022 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
