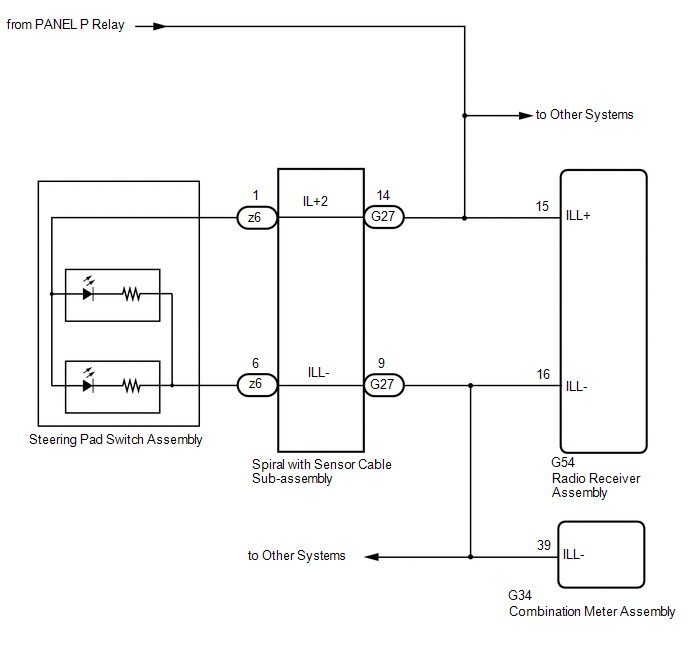

Illumination Circuit [12/2017 - 10/2022]: Wiring Diagram

GTY796736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
