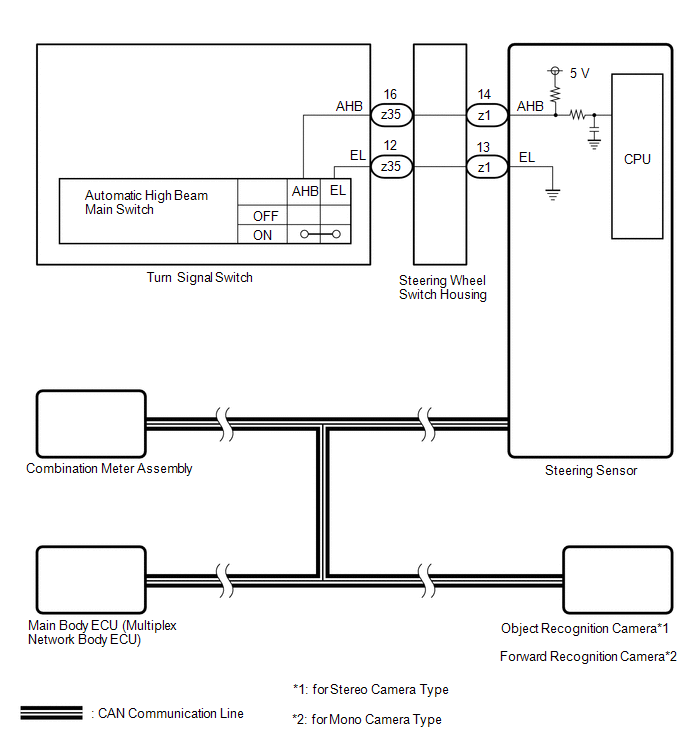

Automatic High Beam System does not Operate or Operation Indicator does not Illuminate [10/2020 - 11/2021]: Wiring Diagram

GTY969973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
