Parts Location [10/2020 - ]: Illustration

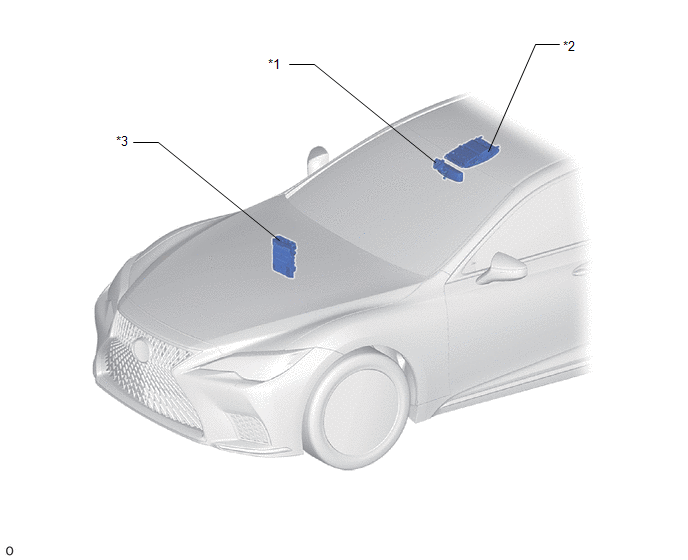

Fig 1: Garage Door Opener System Replacement Components (1 of 2) [10/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INNER REAR VIEW MIRROR ASSEMBLY - GARAGE DOOR OPENER	*2	MAP LIGHT ASSEMBLY
*3	ECM	-	-

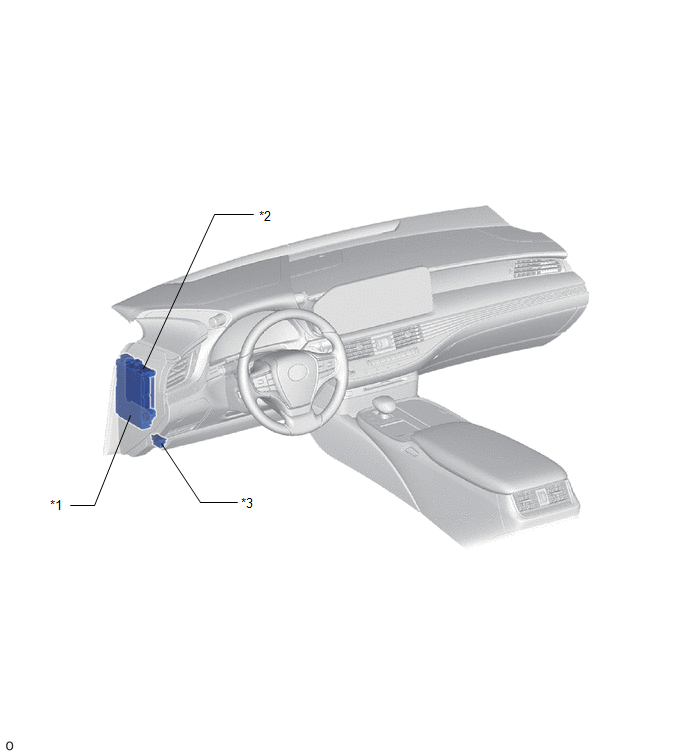

Fig 1: Garage Door Opener System Replacement Components (2 of 2) [10/2020 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - MPX-B D NO. 1 FUSE - IG1 D NO. 2 FUSE	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	DLC3	-	-
