Check Bus 1 Line for Short to +B [10/2020 - 10/2022]: Wiring Diagram

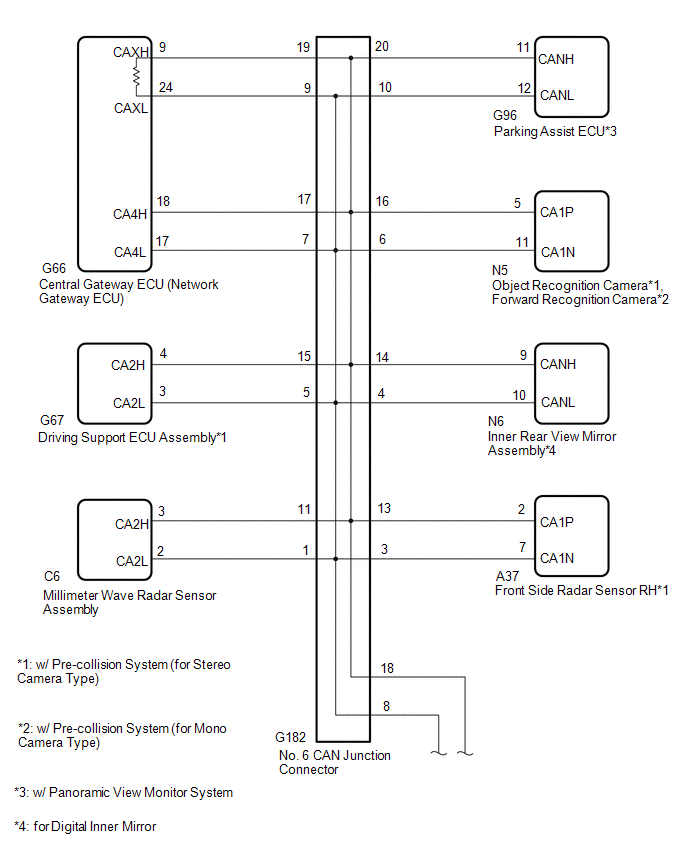

GTY969332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

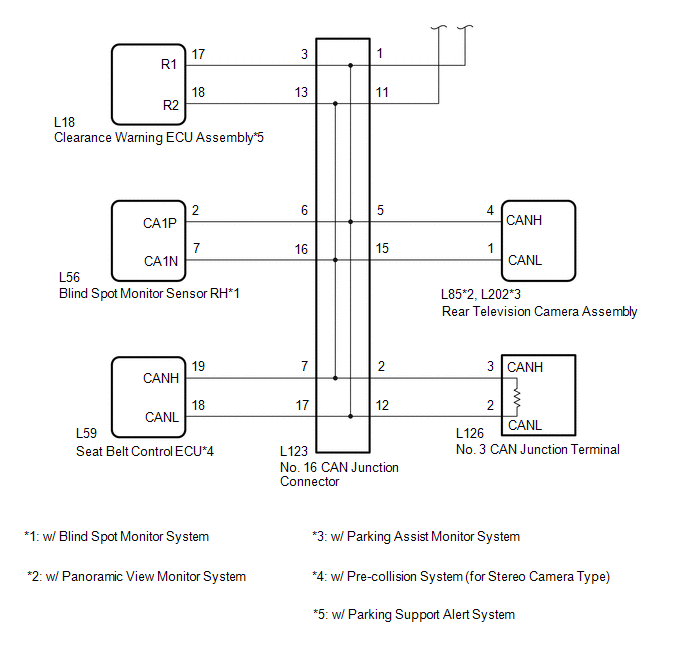

GTY787691

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
