DTC B2352: Lost Communication with Power Integration No. 1 ECU; DTC B2353: Lost Communication with Power Integration No. 2 ECU; DTC B2354: Lost Communication with Power Integration No. 3 ECU [12/2017 - 10/2020]: Wiring Diagram

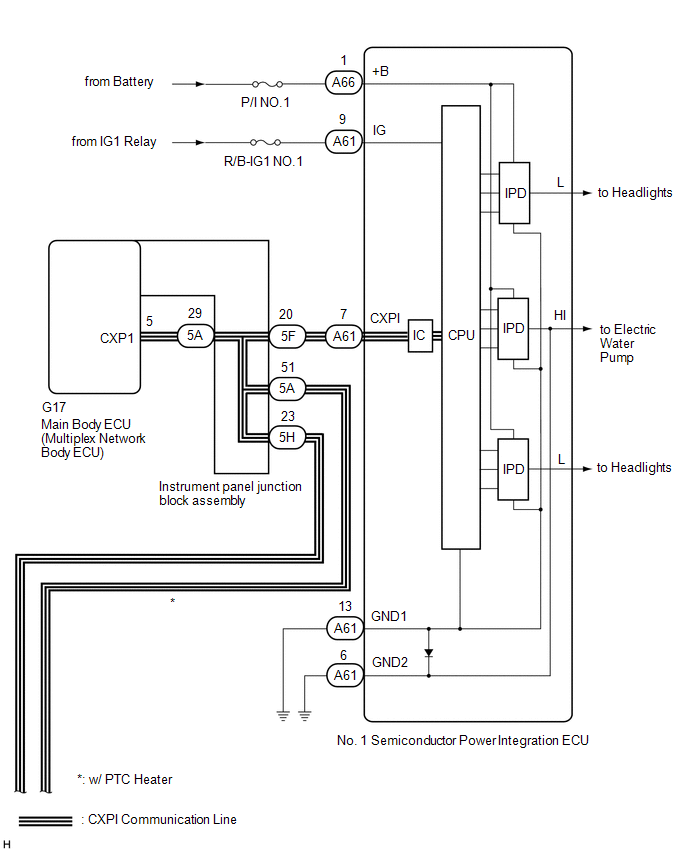

GTY805910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

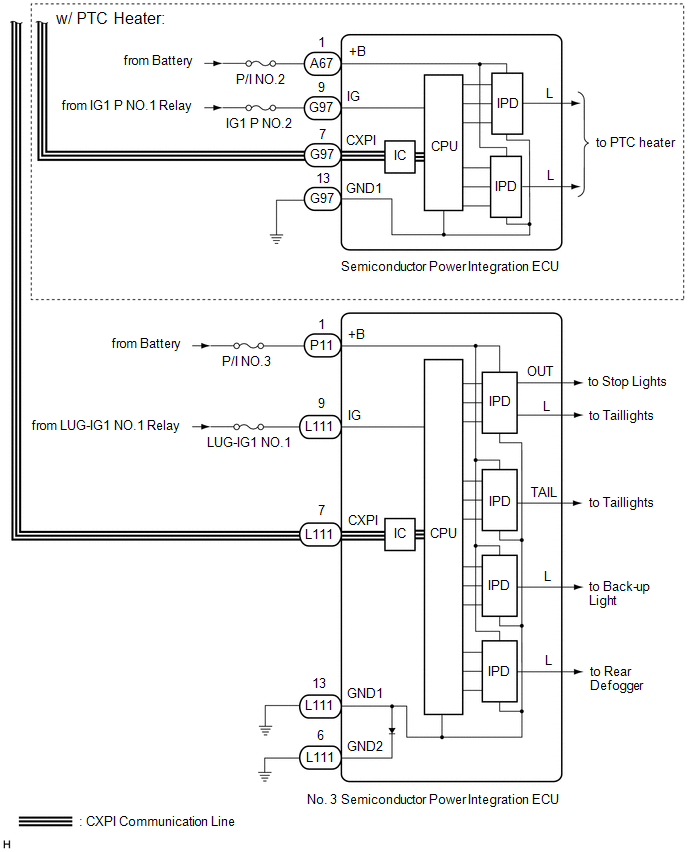

GTY838150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
