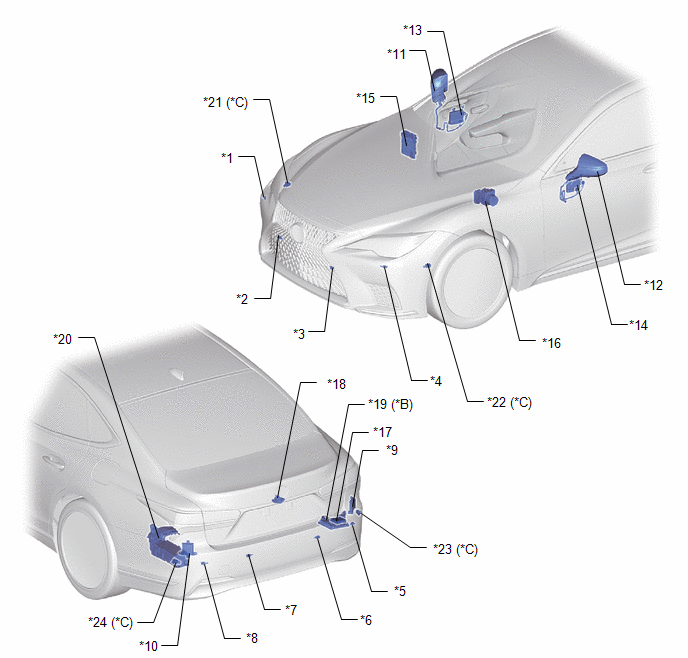

Parts Location [10/2023 - ]: Illustration
| *A | w/ Parking Assist Monitor System | *B | w/ Panoramic View Monitor System |
| *C | w/ Advanced Park | - | - |
| *1 | FRONT CORNER ULTRASONIC SENSOR (FR SENSOR) | *2 | FRONT CENTER ULTRASONIC SENSOR (FRC SENSOR) |
| *3 | FRONT CENTER ULTRASONIC SENSOR (FLC SENSOR) | *4 | FRONT CORNER ULTRASONIC SENSOR (FL SENSOR) |
| *5 | REAR CORNER ULTRASONIC SENSOR (RR SENSOR) | *6 | REAR CENTER ULTRASONIC SENSOR (RRC SENSOR) |
| *7 | REAR CENTER ULTRASONIC SENSOR (RLC SENSOR) | *8 | REAR CORNER ULTRASONIC SENSOR (RL SENSOR) |
| *9 | BLIND SPOT MONITOR SENSOR RH (B) | *10 | BLIND SPOT MONITOR SENSOR LH (A) |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY RH -OUTER REAR VIEW MIRROR INDICATOR RH |
*12 | OUTER REAR VIEW MIRROR ASSEMBLY LH -OUTER REAR VIEW MIRROR INDICATOR LH |
| *13 | FRONT MULTIPLEX NETWORK DOOR ECU ASSEMBLY RH | *14 | FRONT MULTIPLEX NETWORK DOOR ECU ASSEMBLY LH |
| *15 | ECM | *16 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *17 | CLEARANCE WARNING ECU ASSEMBLY | *18 | REAR TELEVISION CAMERA ASSEMBLY |
| *19 | PARKING ASSIST ECU | *20 | NO. 2 LUGGAGE ROOM RLAY BLOCK - LUG-IGR NO. 1 FUSE |
| *21 | FRONT SIDE ULTRASONIC SENSOR (FRS SENSOR) | *22 | FRONT SIDE ULTRASONIC SENSOR (FLS SENSOR) |
| *23 | REAR SIDE ULTRASONIC SENSOR (RRS SENSOR) | *24 | REAR SIDE ULTRASONIC SENSOR (RLS SENSOR) |

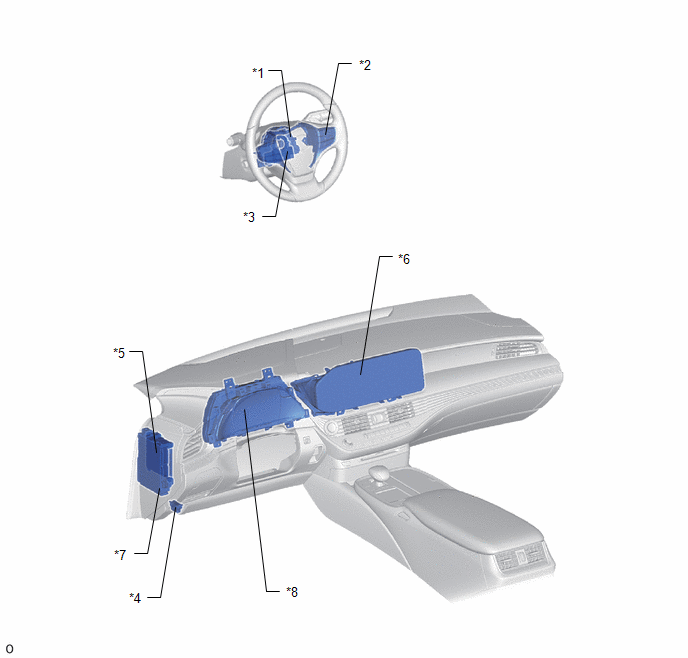

| *A | w/ Headup Display System | *B | w/o Vacuum Brake Booster |
| *C | w/ Variable Gear Ratio Steering System | - | - |
| *1 | SPIRAL CABLE SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | STEERING SENSOR | *4 | DLC3 |
| *5 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *6 | MULTI-DISPLAY |
| *7 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-DCC NO. 1 FUSE |
*8 | COMBINATION METER ASSEMBLY |
