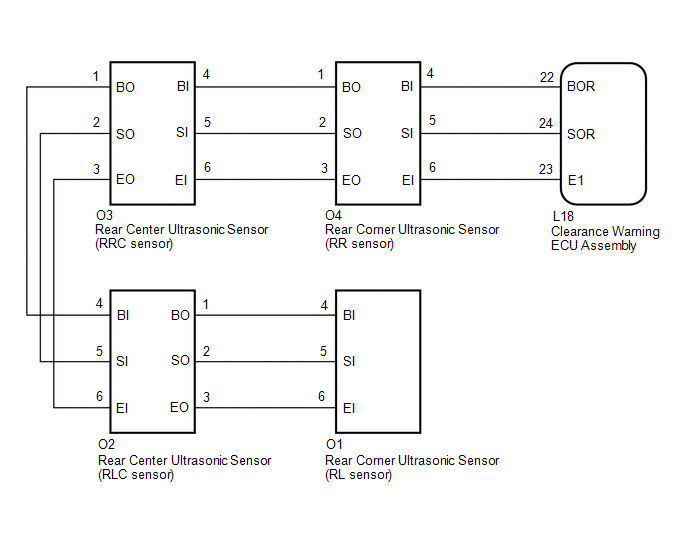

DTC C1AED: Rear Sensor Communication Malfunction [12/2017 - 10/2020]: Wiring Diagram

GTY812709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
