Parts Location [10/2023 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

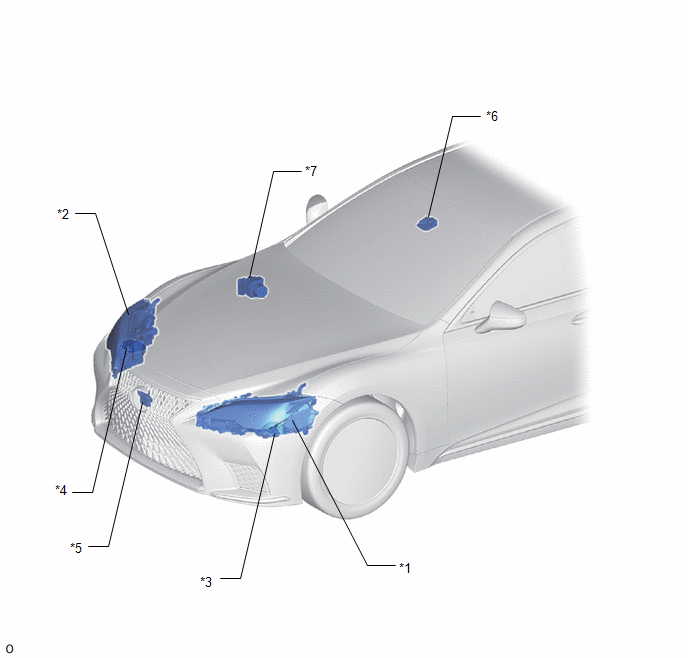

*1	HEADLIGHT UNIT ASSEMBLY LH	*2	HEADLIGHT UNIT ASSEMBLY RH
*3	MILLIMETER WAVE RADAR SENSOR ASSEMBLY	*4	FORWARD RECOGNITION CAMERA
*5	HEADLIGHT ECU SUB-ASSEMBLY LH	*6	HEADLIGHT ECU SUB-ASSEMBLY RH
*7	SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	-	-

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

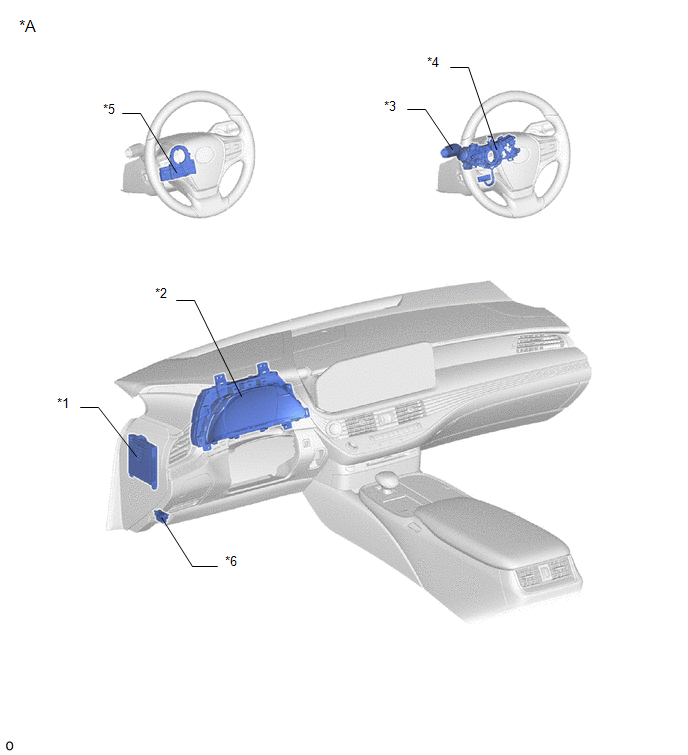

*1	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*2	COMBINATION METER ASSEMBLY
*3	TURN SIGNAL SWITCH - AUTOMATIC HIGH BEAM SWITCH	*4	STEERING WHEEL SWITCH HOUSING
*5	STEERING SENSOR	*6	DLC3
