Removal [10/2023 - ]: Procedure

  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

    Refer to PROCEDURE - Step 24

  2. REMOVE LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 25

  3. REMOVE TOOL BOX

    Refer to PROCEDURE - Step 28

  4. REMOVE INNER LOWER LUGGAGE COMPARTMENT TRIM COVER

    Refer to PROCEDURE - Step 29

  5. REMOVE BLE INDOOR DIGITAL KEY RECEIVER ASSEMBLY
    1. Disconnect the connector.

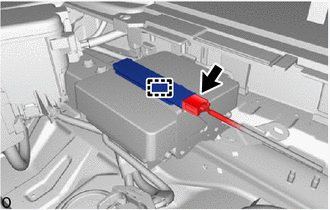

      GTY1238055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Detach the clamp and remove the BLE indoor digital key receiver assembly.
      NOTE:

      Do not reuse parts if dropped or subjected to any strong impact.
