Parts Location [10/2023 - ]: Illustration

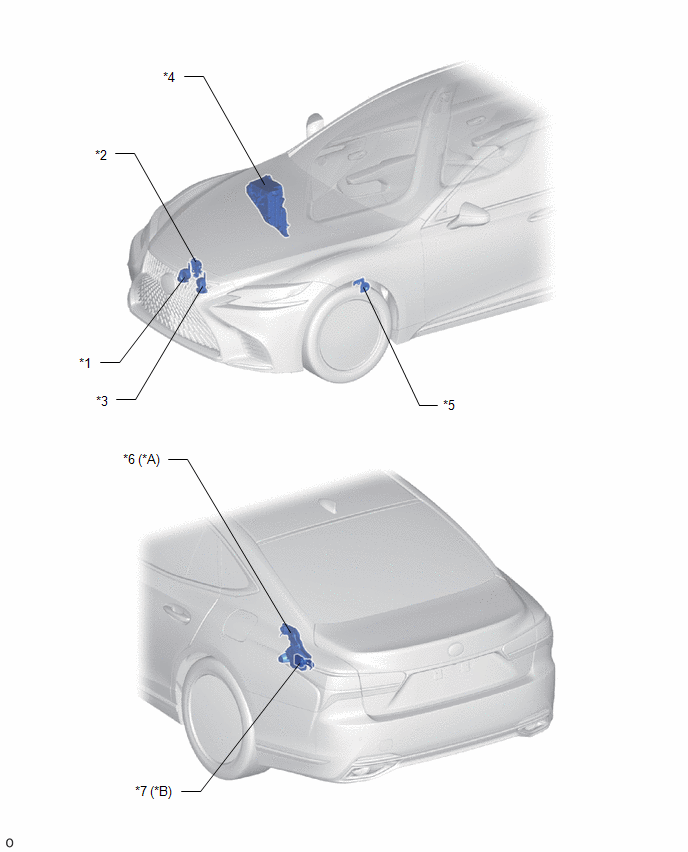

Fig 1: Theft Deterrent System Components Locations (1 Of 2) [10/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Power Trunk Lid System	*B	w/o Power Trunk Lid System
*1	HIGH PITCHED HORN ASSEMBLY	*2	HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH)
*3	LOW PITCHED HORN ASSEMBLY	*4	NO. 1 ENGINE ROOM RELAY BLOCK - SECURITY WARNING RELAY (S-HORN) - HORN RELAY - S-HORN FUSE - HORN FUSE
*5	SECURITY HORN ASSEMBLY	*6	LUGGAGE CLOSER MOTOR ASSEMBLY
*7	MULTIPLEX NETWORK DOOR ECU	-	-

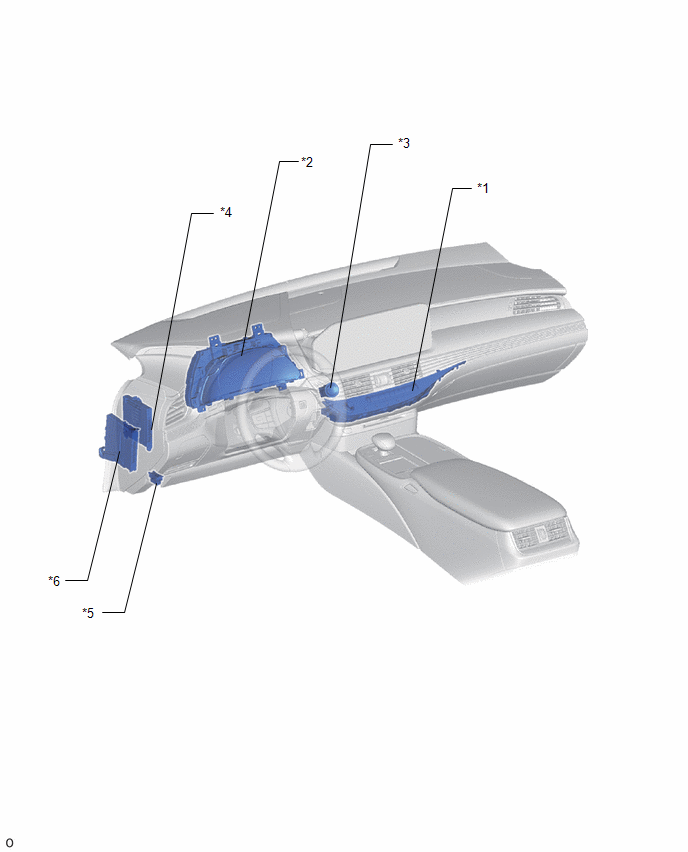

Fig 1: Theft Deterrent System Components Locations (2 Of 2) [10/2023 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIR CONDITIONING CONTROL ASSEMBLY - SECURITY INDICATOR LIGHT	*2	COMBINATION METER ASSEMBLY
*3	ENGINE SWITCH	*4	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*5	DLC3	*6	CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
