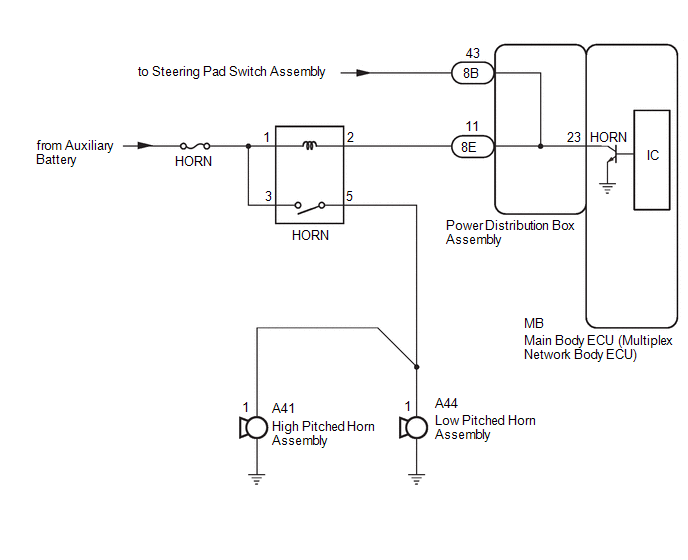

Horn Circuit [10/2023 - ]: Wiring Diagram

GTY1231695

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
