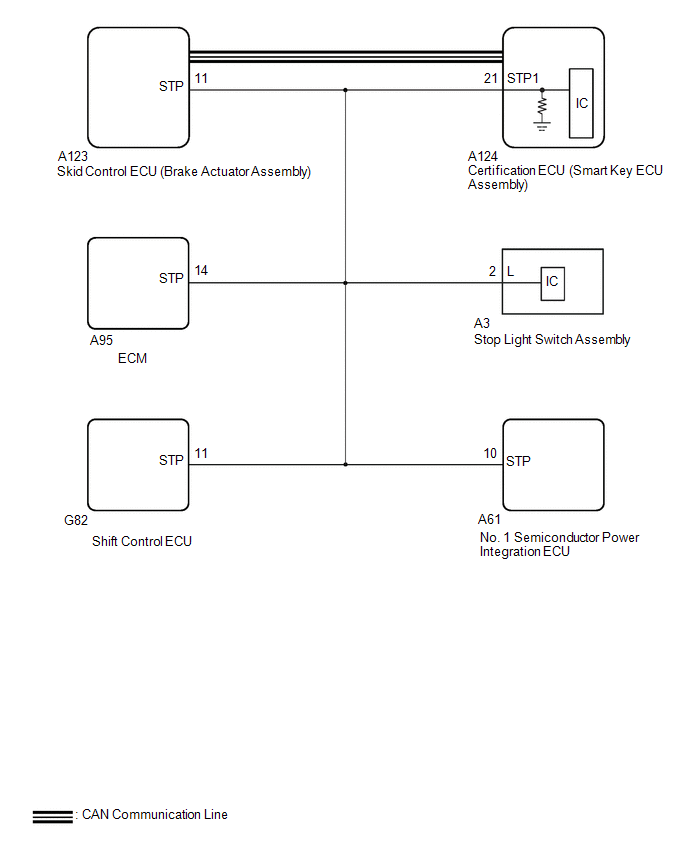

DTC P0571-62: Brake Switch "A" Signal Compare Failure [10/2023 - ]: Wiring Diagram

GTY1231730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
