Engine Control System - Diagnostic Codes (10 Of 14)
>>
SFI System
>>
DTC P1360-01: "A" Camshaft Position Actuator Bank 1 General Electrical Failure; DTC P1361-01: "A" Camshaft Position Actuator Bank2 General Electrical Failure [12/2017 - 10/2020]
>>

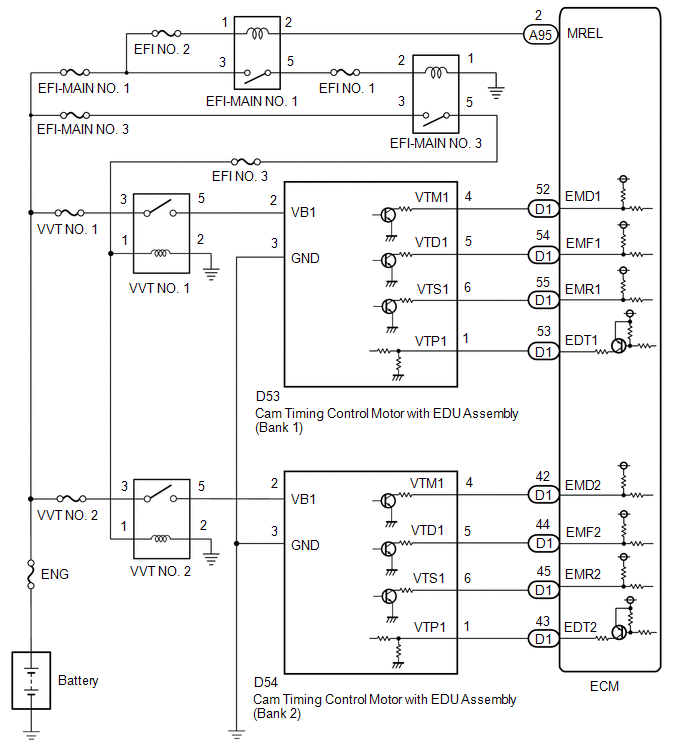

Wiring Diagram
DTC P1360-01: "A" Camshaft Position Actuator Bank 1 General Electrical Failure; DTC P1361-01: "A" Camshaft Position Actuator Bank2 General Electrical Failure [12/2017 - 10/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
