DTC P0033-12: Turbocharger / Supercharger Bypass Valve "A" Control Circuit Short to Battery; DTC P00C0-12: Turbocharger/Supercharger Bypass Valve "B" Control Circuit Short to Battery [12/2017 - ]: Wiring Diagram

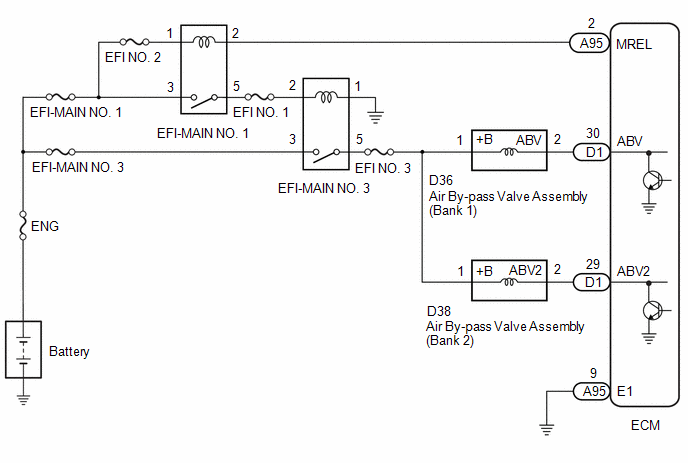

GTY823685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
