DTC C1464: Front Speed Sensor RH Circuit; DTC C1465: Front Speed Sensor LH Circuit [12/2017 - 10/2020]: Wiring Diagram

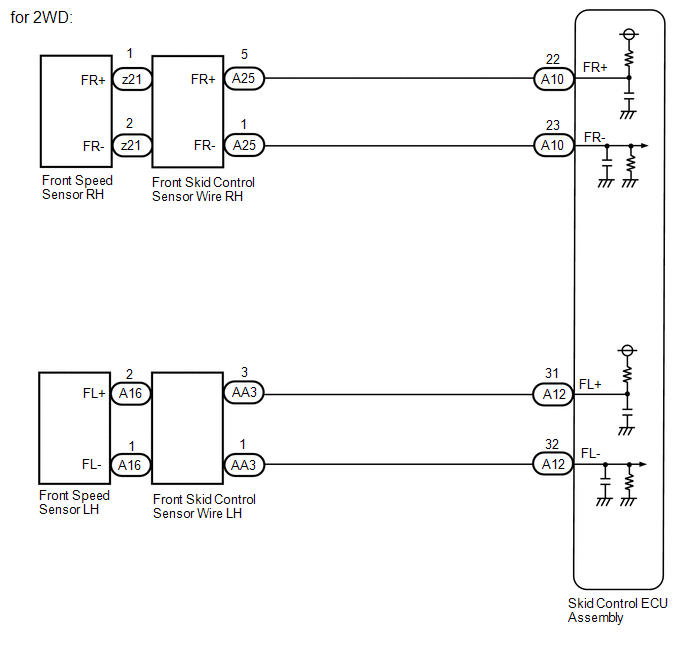

GTY814377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY828949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
