Brake Hold Standby Indicator Light Circuit [12/2017 - 10/2023]: Wiring Diagram

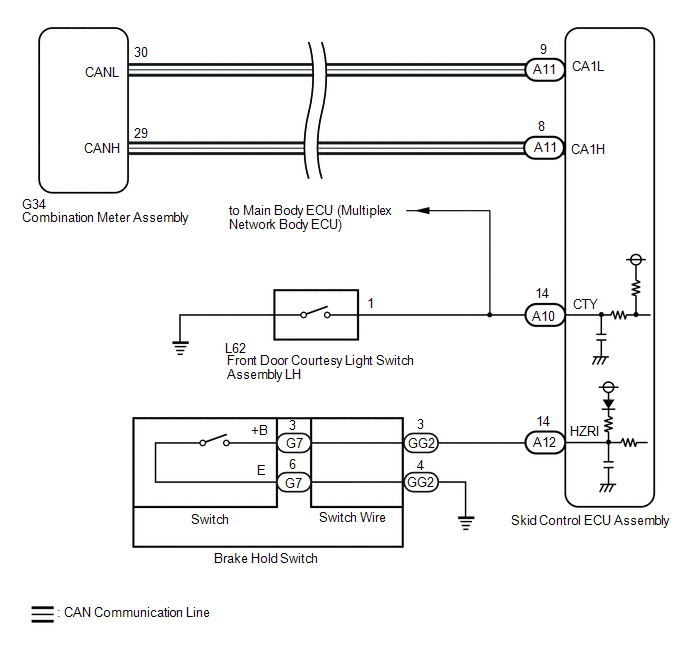

GTY794143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
