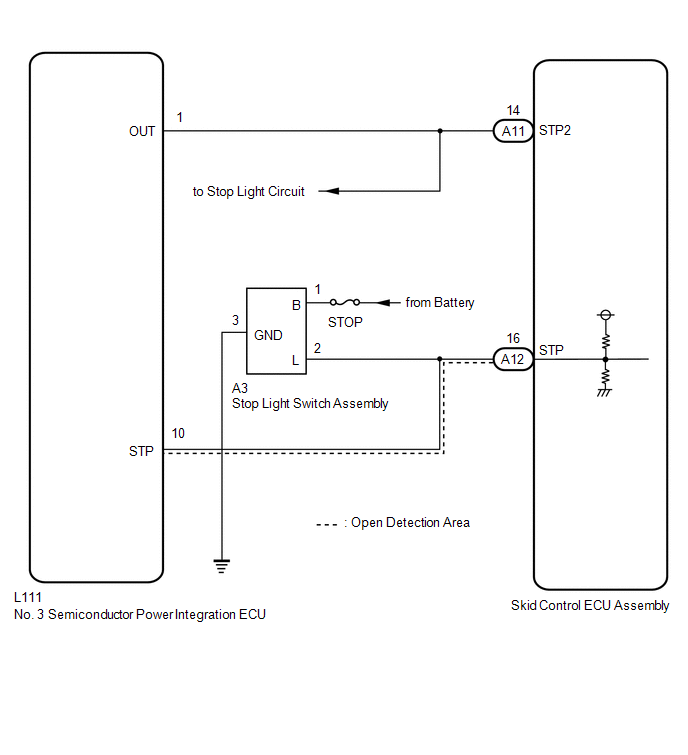

DTC C1249: Open Circuit in Stop Light Switch Circuit [12/2017 - 10/2023]: Wiring Diagram

GTY814549

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
