DTC C1231: Steering Angle Sensor Circuit [12/2017 - 10/2023]: Wiring Diagram

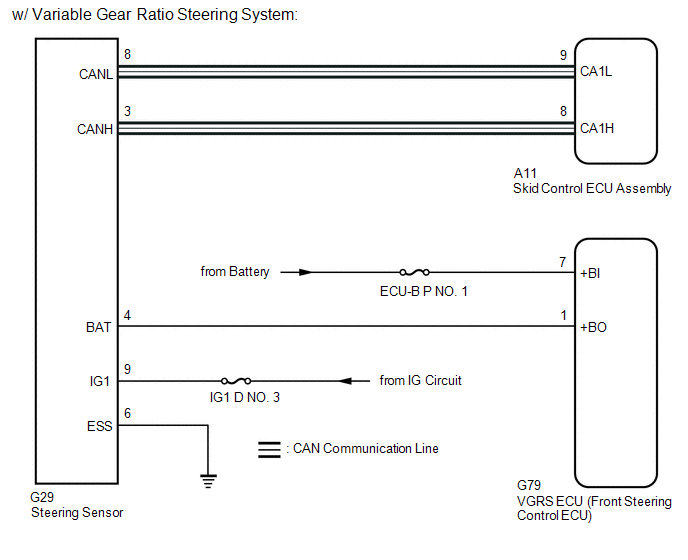

GTY794564

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

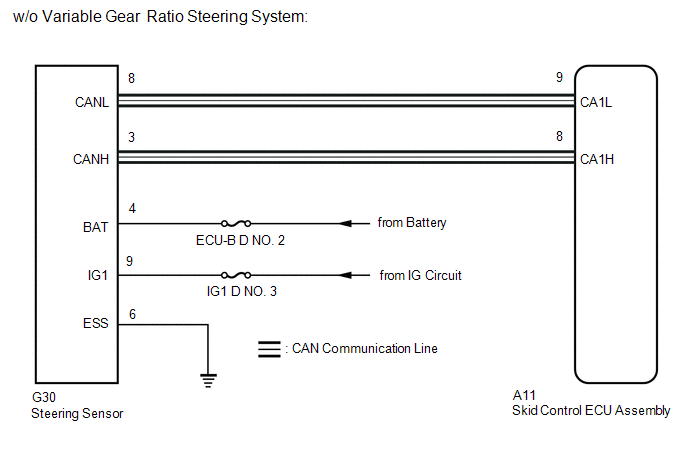

GTY834639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
