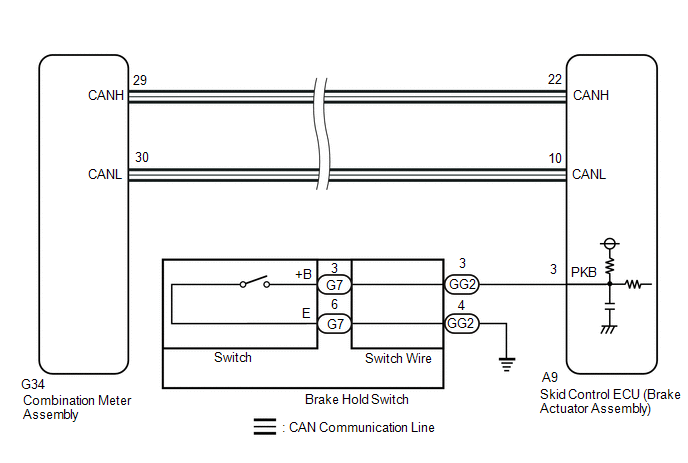

Brake Hold Standby Indicator Light Circuit [12/2017 - 09/2018]: Wiring Diagram

GTY827777

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
