Installation [10/2020 - ]: Procedure

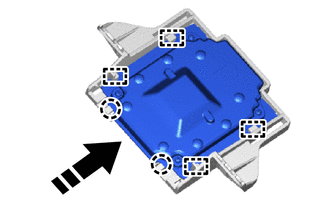

1. While moving the navigation antenna assembly in the direction indicated in the illustration, install it to the navigation bracket guide.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Attach the claw and install the navigation antenna assembly.
3. Connect the connector and attach the claw.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the navigation antenna assembly with bracket the 2 screws.
2. Attach the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PROCEDURE - Step 8

Refer to PROCEDURE - Step 10

Refer to PROCEDURE - Step 11

Refer to INSTALLATION [10/2020 - 10/2022] , or refer to INSTALLATION [10/2022 - 10/2023] , or refer to INSTALLATION [10/2023 - ]

Refer to PROCEDURE - Step 2 [10/2020 - 10/2023] , or refer to PROCEDURE - Step 2 [10/2023 - ]

Refer to PROCEDURE - Step 11

Refer to WORK PROCEDURE [10/2020 - 10/2022] , or refer to WORK PROCEDURE [10/2022 - 10/2023] , or refer to WORK PROCEDURE [10/2023 - ]

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [10/2020 - 10/2023] , or refer to AUTOMATIC LEARNING CHART [10/2023 - ]

Refer to DTC CHECK / CLEAR [12/2017 - 10/2023] , or refer to DTC CHECK / CLEAR [10/2023 - ]

Refer to OPERATION CHECK [12/2017 - 11/2021] , or refer to OPERATION CHECK [11/2021 - 10/2023] , or refer to OPERATION CHECK [10/2023 - ]
