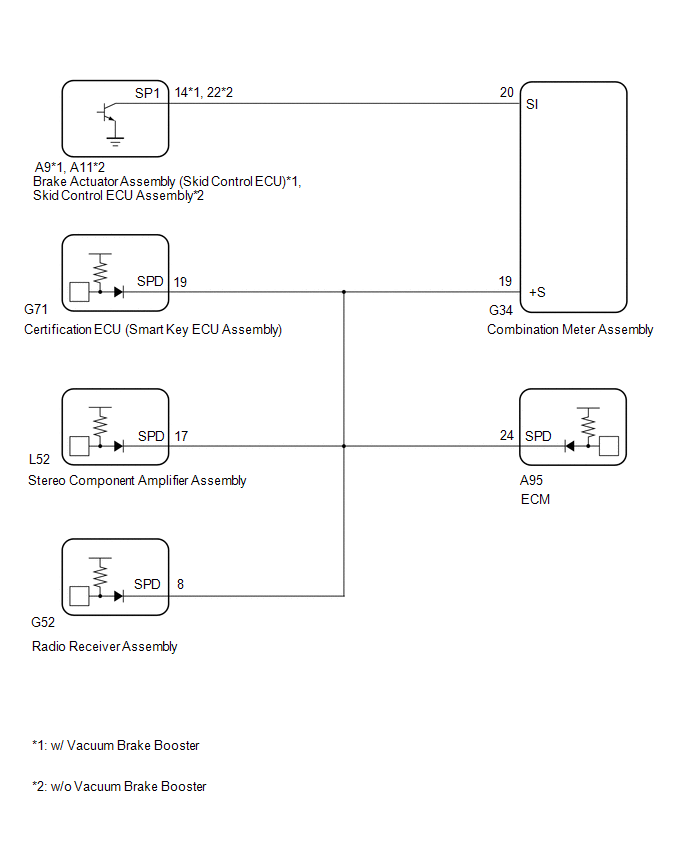

Speed Signal Circuit [10/2022 - 10/2023]: Wiring Diagram

GTY1124989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
