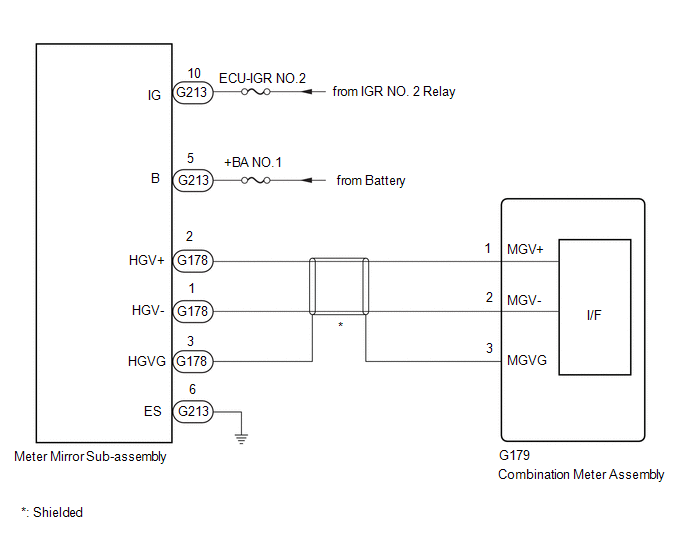

DTC B1510-87: Lost Communication with HUD Gigabit Video Interface Missing Message [10/2023 - ]: Wiring Diagram

GTY1238118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
