DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [12/2017 - 10/2020]: Wiring Diagram

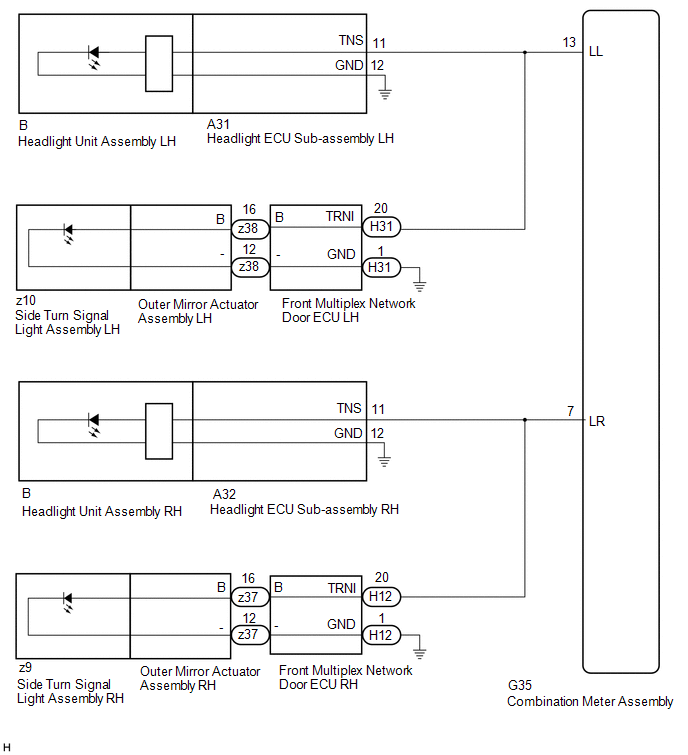

for Front Side:

GTY836458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

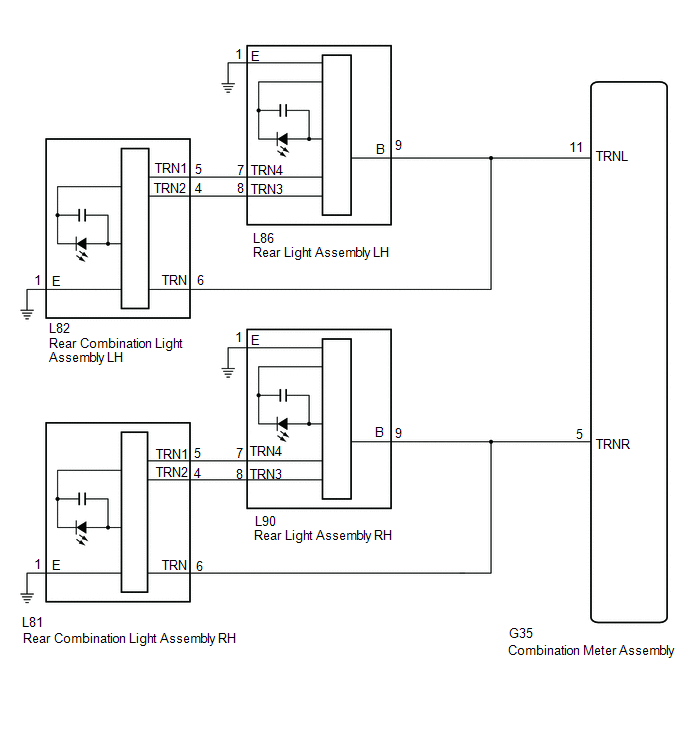

for Rear Side:

GTY792082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
