Meter / Gauge System - Diagnostic Codes (1 Of 2)
>>
Meter / Gauge System
>>
DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [10/2020 - 10/2022]
>>

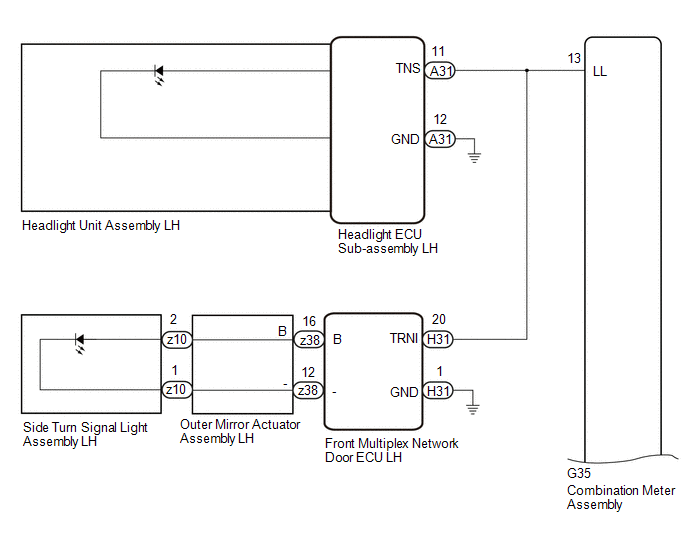

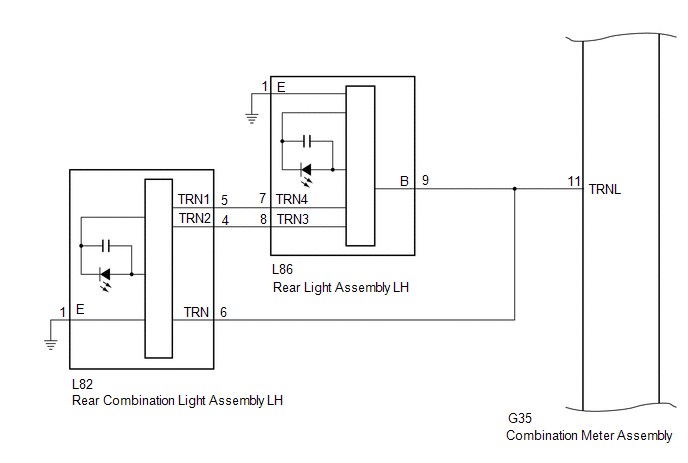

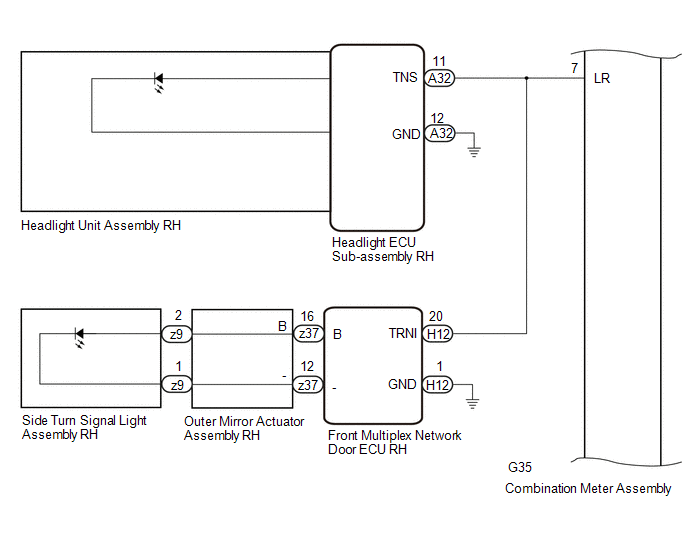

Wiring Diagram
DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [10/2020 - 10/2022]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
