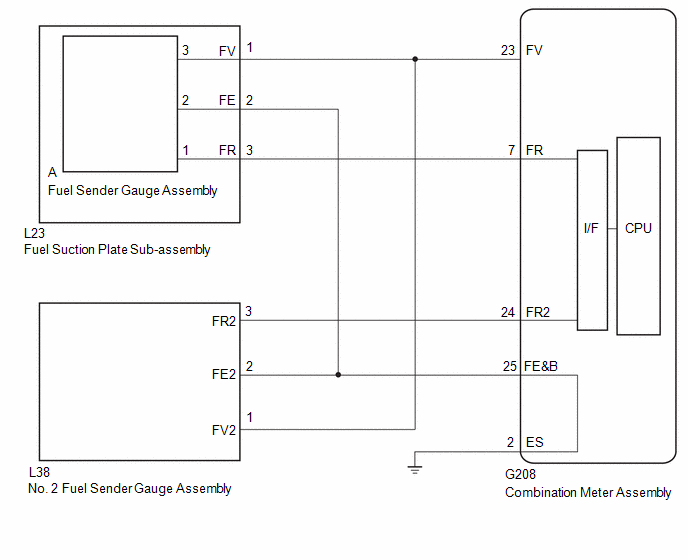

DTC B1500-13: Fuel Sender Circuit Open; DTC B1501-13: Sub Fuel Sender Circuit Open [10/2023 - ]: Wiring Diagram

GTY1236291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
