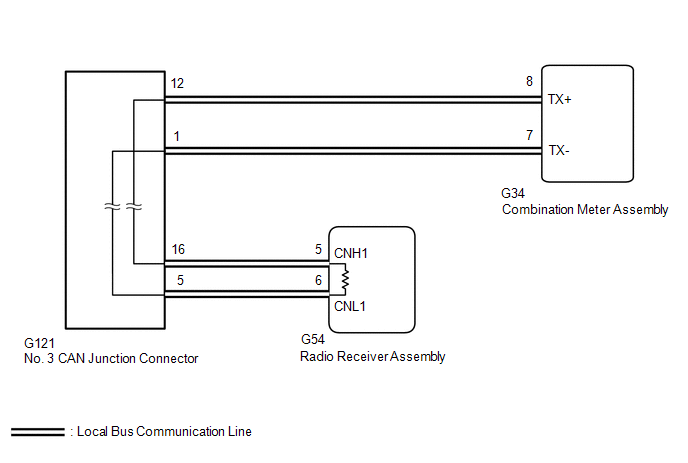

DTC B1321-87: Lost Communication with EMV Missing Message [12/2017 - 10/2020]: Wiring Diagram

GTY792654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
