Removal [01/2017 - ]: Procedure

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  3. REMOVE QUARTER INSIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 17 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 18 [05/2023 - ]

  4. REMOVE REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

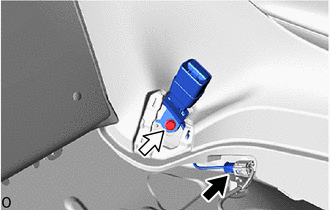

    1. GTY819996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Connector
      Bolt

      Disconnect the connector.

    2. Remove the bolt.
    3. Pass the wire harness and connector of the rear No. 1 seat inner belt assembly LH through the hole on the quarter trim panel assembly LH.
      NOTE:

      Take care not to damage the wire harness and connector.

    4. Remove the rear No. 1 seat inner belt assembly LH.
