Components [01/2017 - ]

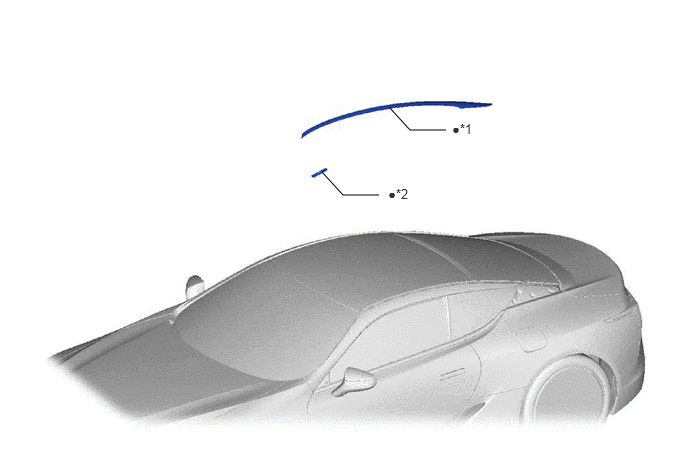

Fig 1: Roof Drip Side Finish Moulding Replacement Components
GTY950178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR ROOF SIDE GARNISH SUB-ASSEMBLY LH *2 NO. 1 OUTSIDE MOULDING RETAINER
• Non-reusable part - -
