Components [10/2022 - ]

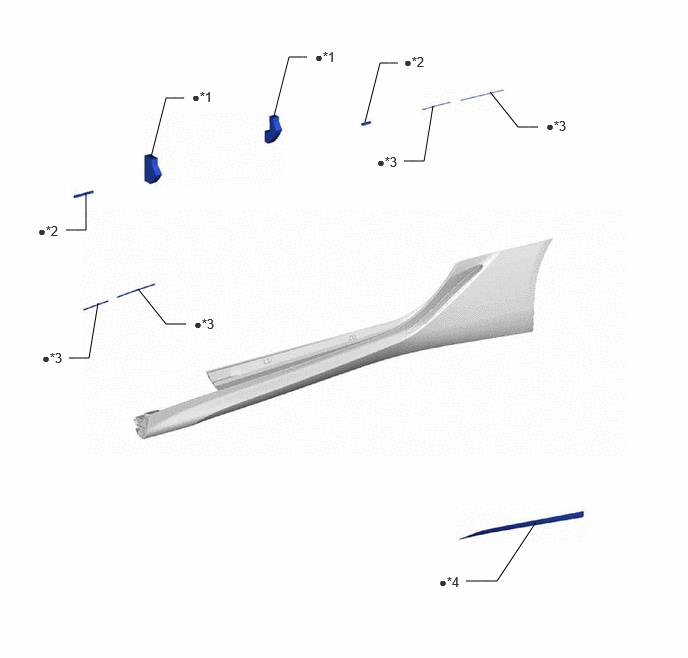

Fig 1: Rocker Panel Moulding Replacement Components [10/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BODY ROCKER PANEL MOULDING ASSEMBLY LH	*2	FRONT REAR WHEEL HOUSE PLATE LH
*3	REAR BUMPER PAD	*4	ROCKER PANEL MOULDING END COVER
•	Non-reusable part	-	-

Fig 2: Rocker Panel Moulding Replacement Components [10/2022 - ] (2 Of 2)

*1	NO. 1 ROCKER PANEL MOULDING PROTECTOR	*2	NO. 2 ROCKER PANEL MOULDING PROTECTOR
*3	NO. 2 SIDE MUDGUARD PROTECTOR	*4	NO. 6 ROCKER PANEL MOULDING PROTECTOR
•	Non-reusable part	-	-
