Components [01/2017 - 10/2022]

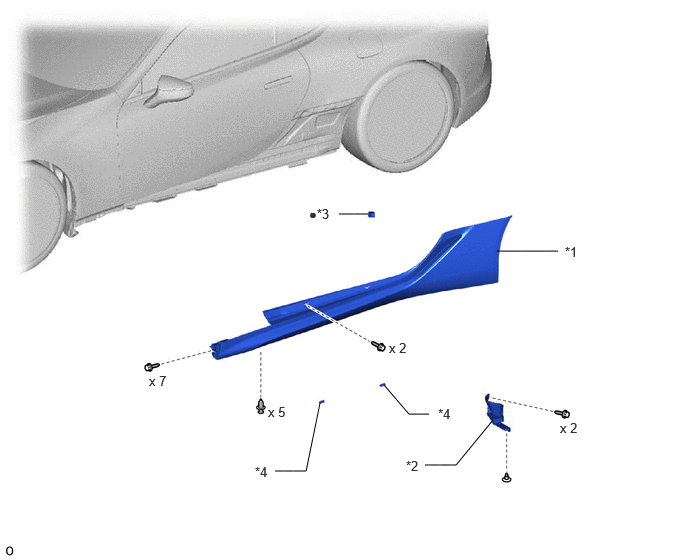

Fig 1: Rocker Panel Moulding Replacement Components [01/2017 - 10/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	BODY ROCKER PANEL MOULDING ASSEMBLY LH	*2	FRONT REAR WHEEL HOUSE PLATE LH
*3	REAR BUMPER PAD	*4	ROCKER PANEL MOULDING END COVER
•	Non-reusable part	-	-

Fig 2: Rocker Panel Moulding Replacement Components [01/2017 - 10/2022] (2 Of 2)

*1	NO. 1 ROCKER PANEL MOULDING PROTECTOR	*2	NO. 2 REAR BODY NAME PLATE
*3	NO. 2 ROCKER PANEL MOULDING PROTECTOR	*4	NO. 2 SIDE MUDGUARD PROTECTOR
*5	NO. 6 ROCKER PANEL MOULDING PROTECTOR	-	-
•	Non-reusable part	-	-
