Name Plate
>>
Components [01/2017 - 10/2022]
Components [01/2017 - 10/2022]

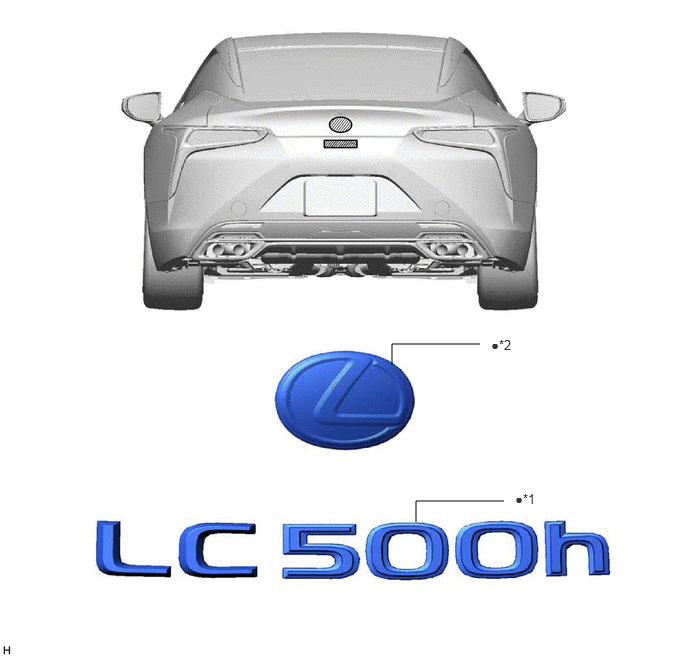

Fig 1: Name Plate Replacement Components [01/2017 - 10/2022] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 3 LUGGAGE COMPARTMENT DOOR PLATE
*2
SYMBOL EMBLEM
•
Non-reusable part
-
-

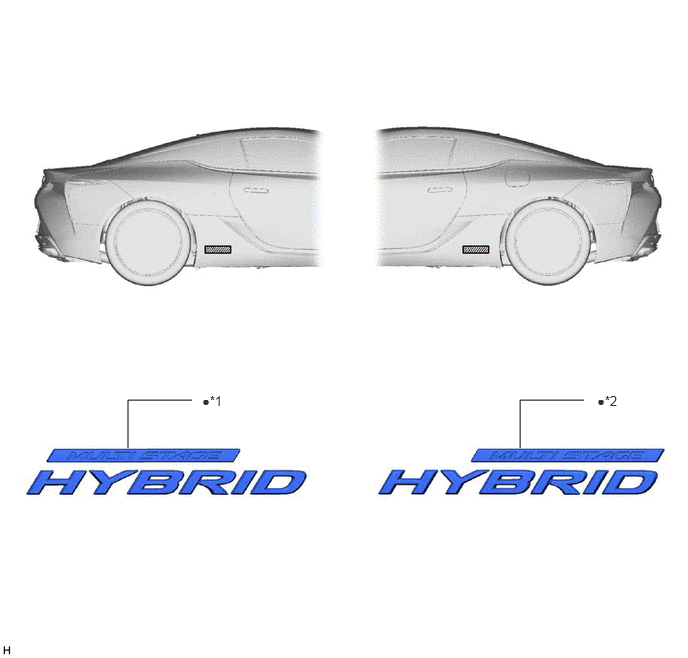

Fig 2: Name Plate Replacement Components [01/2017 - 10/2022] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
NO. 1 REAR BODY NAME PLATE
*2
NO. 2 REAR BODY NAME PLATE
•
Non-reusable part
-
-
