Components [01/2017 - ]

Fig 1: Active Rear Wing Replacement Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

LUGGAGE COMPARTMENT DOOR ASSIST GRIP

LUGGAGE COMPARTMENT DOOR COVER

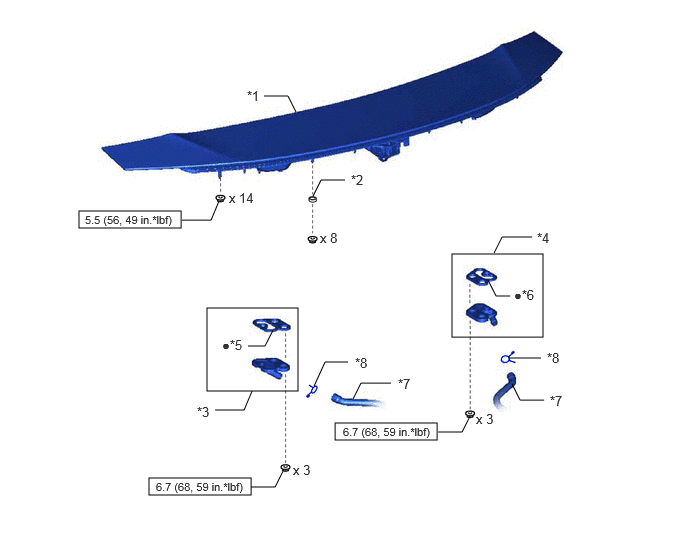

Fig 2: Active Rear Wing Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ACTIVE REAR WING	*2	COLLAR
*3	REAR SPOILER DRAIN END CAP LH	*4	REAR SPOILER DRAIN END CAP RH
*5	REAR SPOILER NO. 2 SEAL	*6	REAR SPOILER SEAL
*7	SLIDING ROOF DRAIN HOSE	*8	CLIP
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

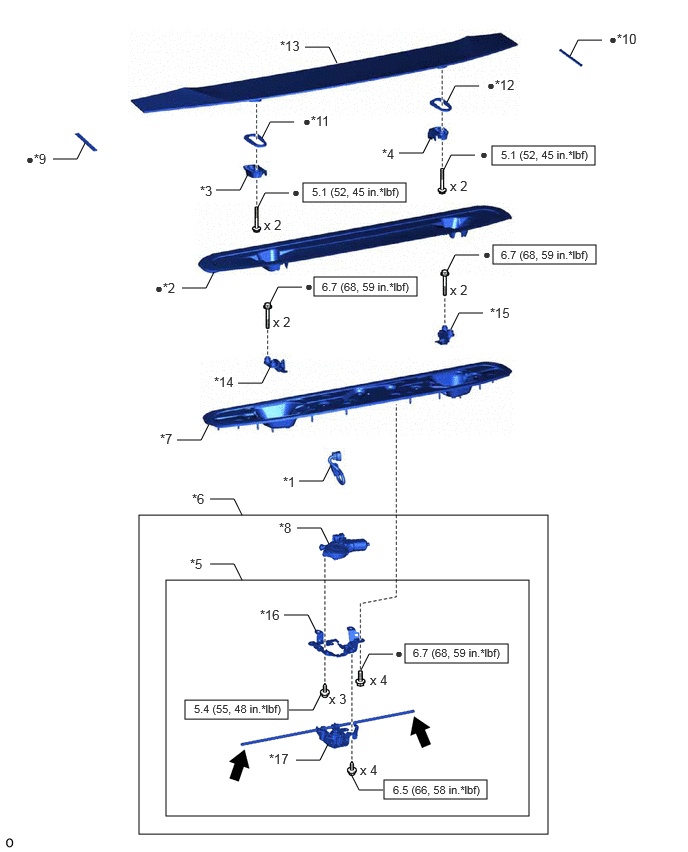

Fig 3: Active Rear Wing Replacement Components With Torque Specifications (3 Of 3)

*1	CONNECTOR WIRE	*2	REAR SPOILER COVER
*3	REAR SPOILER COVER LH	*4	REAR SPOILER COVER RH
*5	REAR SPOILER DRIVE GEAR ASSEMBLY	*6	REAR SPOILER DRIVE GEAR SUB-ASSEMBLY
*7	REAR SPOILER INSERT	*8	REAR SPOILER MOTOR ASSEMBLY
*9	REAR SPOILER NO. 12 PROTECTOR LH	*10	REAR SPOILER NO. 12 PROTECTOR RH
*11	REAR SPOILER PROTECTOR LH	*12	REAR SPOILER PROTECTOR RH
*13	REAR SPOILER SUB-ASSEMBLY	*14	TOP COVER LOCK CONTROL LINK SUB-ASSEMBLY LH
*15	TOP COVER LOCK CONTROL LINK SUB-ASSEMBLY RH	*16	REAR SPOILER MOTOR BRACKET
*17	SPINDLE ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
	Body Grease S	-	-
