Installation [01/2017 - 05/2023]: Procedure

  1. INSTALL CONSOLE PLATE
    1. Attach the claws to install the console plate.

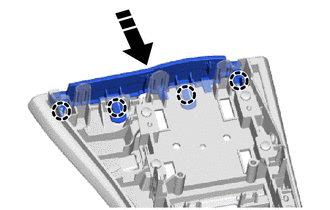

      GTY814505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  2. INSTALL SWITCH AND VOLUME ASSEMBLY
    1. Install the switch and volume assembly with the 4 screws.
      GTY787735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL REMOTE OPERATION CONTROLLER ASSEMBLY
    1. Install the remote operation controller assembly with the 4 screws.
      GTY787707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL RADIO REMOTE TUNING SWITCH ASSEMBLY
    1. Connect the 2 connectors.
      GTY787706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claws to install the radio remote tuning switch assembly in the direction of the arrow shown in the illustration to install it.

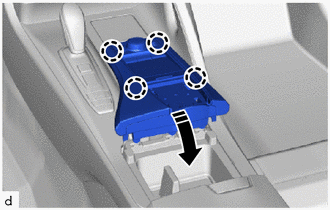

      GTY826375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    3. Attach the claws.

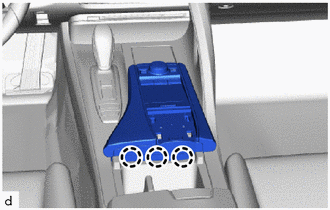

      GTY787741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the radio remote tuning switch assembly with the 2 screws.
      GTY787704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR CONSOLE BOX POCKET
    1. Attach the clips to install the rear console box pocket.

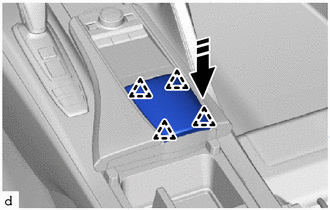

      GTY780795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
