Parts Location [05/2023 - ]: Illustration

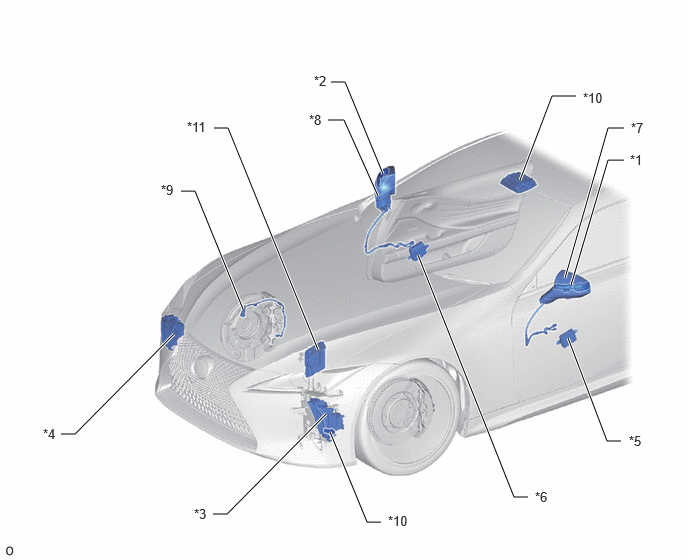

| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *3 | FRONT TURN SIGNAL LIGHT ASSEMBLY LH | *4 | FRONT TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | FRONT MULTIPLEX NETWORK DOOR ECU LH | *6 | FRONT MULTIPLEX NETWORK DOOR ECU RH |
| *7 | OUTER MIRROR ACTUATOR ASSEMBLY LH | *8 | OUTER MIRROR ACTUATOR ASSEMBLY RH |
| *9 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *10 | MAP LIGHT ASSEMBLY |

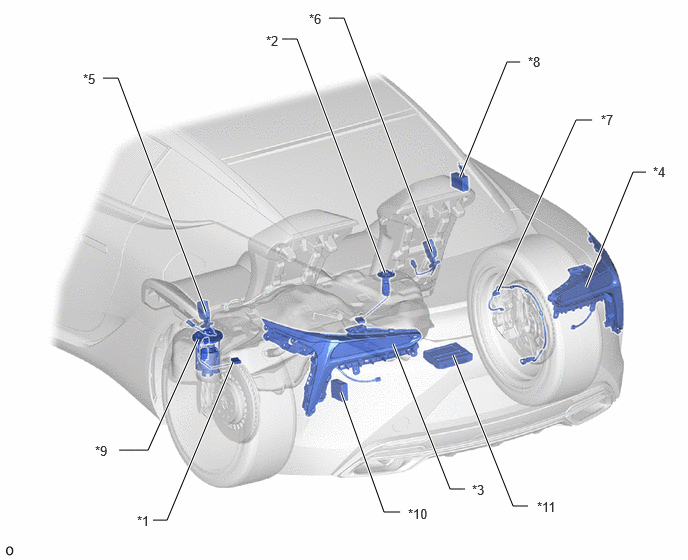

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*4 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *5 | NO. 1 REAR SEAT INNER BELT ASSEMBLY LH | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | PAD WEAR INDICATOR WIRE ASSEMBLY RH | *8 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *9 | FUEL SUCTION PLATE SUB-ASSEMBLY | *10 | PARKING BRAKE ECU ASSEMBLY |
| *11 | STEREO COMPONENT AMPLIFIER ASSEMBLY | - | - |

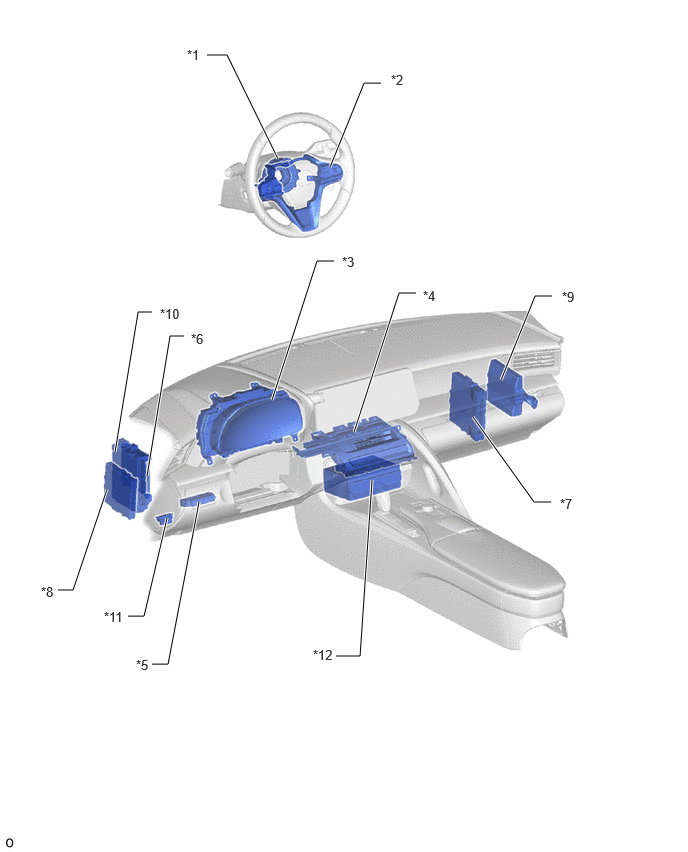

| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *5 | TRIP SWITCH | *6 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *7 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *9 | SKID CONTROL ECU ASSEMBLY | *10 | JUNCTION BLOCK ASSEMBLY LH - IG2 D NO. 1 FUSE - METER FUSE - HAZ FUSE |
| *11 | DLC3 | *12 | RADIO RECEIVER ASSEMBLY |
