Parts Location [01/2017 - 05/2023]: Illustration

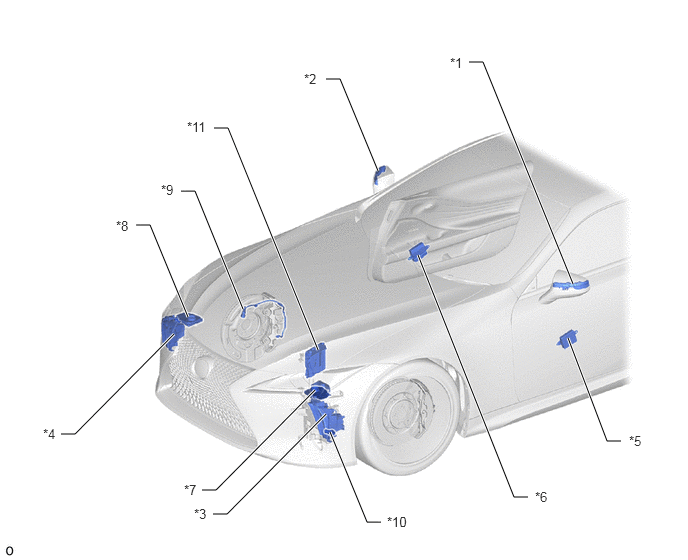

| *1 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH | *2 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH |
| *3 | FRONT TURN SIGNAL LIGHT ASSEMBLY LH | *4 | FRONT TURN SIGNAL LIGHT ASSEMBLY RH |
| *5 | FRONT MULTIPLEX NETWORK DOOR ECU LH | *6 | FRONT MULTIPLEX NETWORK DOOR ECU RH |
| *7 | HEADLIGHT ECU SUB-ASSEMBLY LH | *8 | HEADLIGHT ECU SUB-ASSEMBLY RH |
| *9 | FRONT PAD WEAR INDICATOR WIRE ASSEMBLY RH | *10 | LEVEL WARNING SWITCH ASSEMBLY |
| *11 | ECM | - | - |
| *A | w/ Active Rear Wing | - | - |

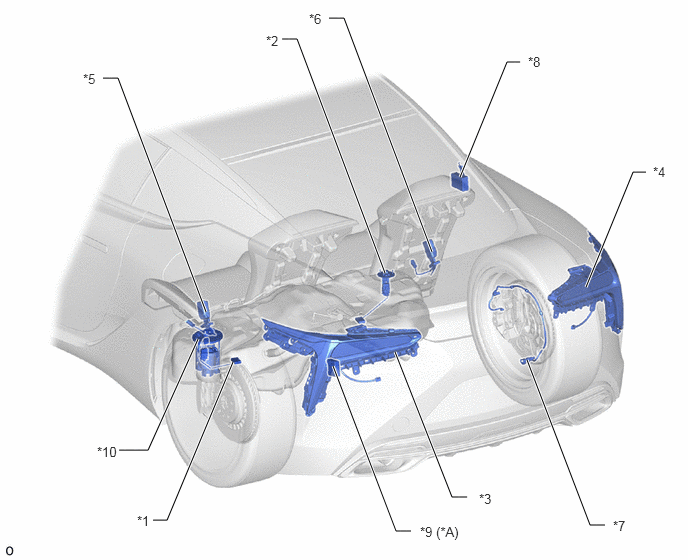

| *1 | FUEL SENDER GAUGE ASSEMBLY | *2 | NO. 2 FUEL SENDER GAUGE ASSEMBLY |
| *3 | REAR COMBINATION LIGHT ASSEMBLY LH - REAR COMBINATION LIGHT LENS AND BODY LH |
*4 | REAR COMBINATION LIGHT ASSEMBLY RH - REAR COMBINATION LIGHT LENS AND BODY RH |
| *5 | NO. 1 REAR SEAT INNER BELT ASSEMBLY LH | *6 | REAR SEAT INNER BELT ASSEMBLY RH |
| *7 | PAD WEAR INDICATOR WIRE ASSEMBLY RH | *8 | TIRE PRESSURE WARNING ECU AND RECEIVER |
| *9 | SPOILER CONTROL ECU ASSEMBLY | *10 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY |

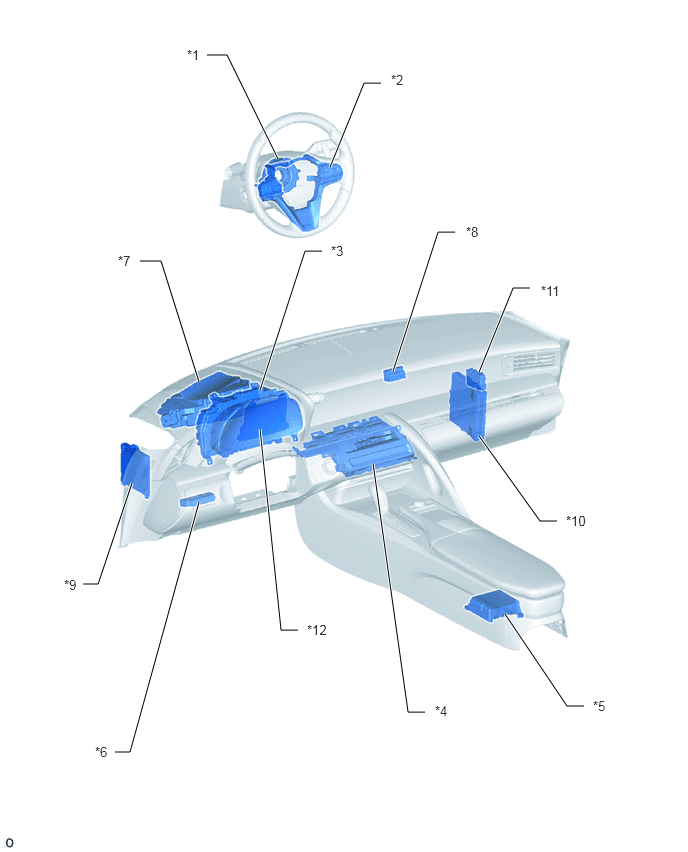

| *1 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY | *2 | STEERING PAD SWITCH ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | INTEGRATION CONTROL AND PANEL ASSEMBLY |
| *5 | AIRBAG ECU ASSEMBLY | *6 | TRIP SWITCH |
| *7 | METER MIRROR SUB-ASSEMBLY | *8 | TELLTALE LIGHT ASSEMBLY |
| *9 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *10 | HYBRID VEHICLE CONTROL ECU ASSEMBLY |
| *11 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *12 | AIR CONDITIONING AMPLIFIER ASSEMBLY |

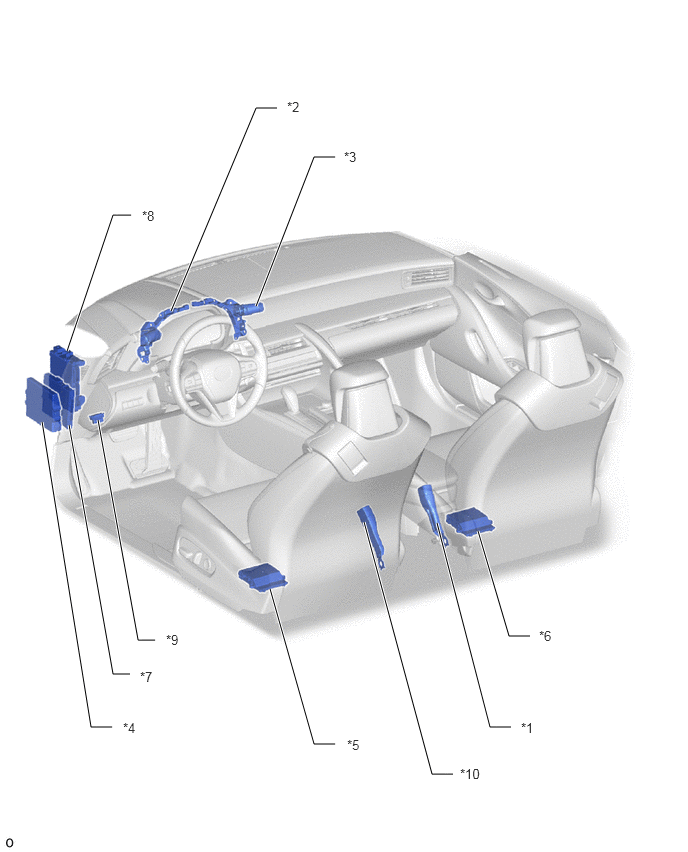

| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | NO. 2 COMBINATION SWITCH ASSEMBLY |
| *3 | COMBINATION SWITCH ASSEMBLY | *4 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *5 | POSITION CONTROL ECU ASSEMBLY LH | *6 | POSITION CONTROL ECU ASSEMBLY RH |
| *7 | SKID CONTROL ECU ASSEMBLY | *8 | DRIVER SIDE JUNCTION BLOCK ASSEMBLY - IG2 D NO. 1 FUSE - METER FUSE - HAZ FUSE |
| *9 | DLC3 | *10 | FRONT SEAT INNER BELT ASSEMBLY LH |
