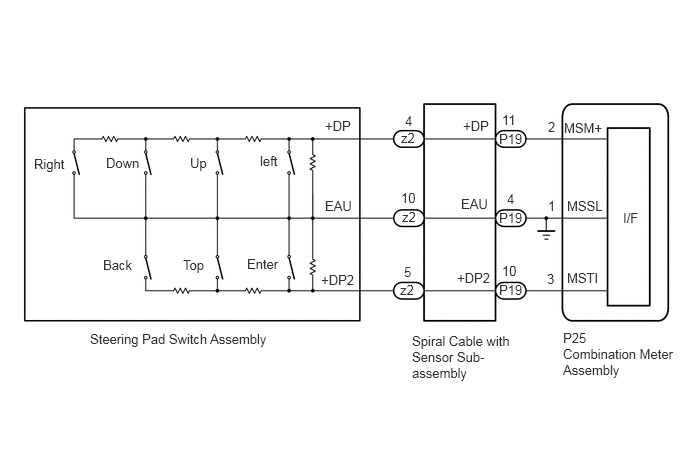

Steering Pad Switch Circuit [01/2017 - ]: Wiring Diagram

GTY784709

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
