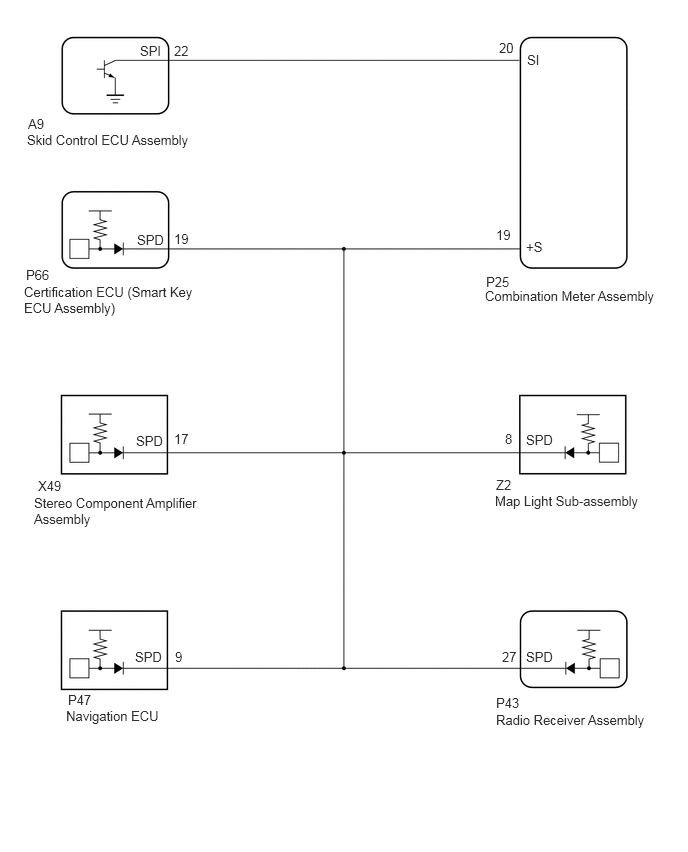

Speed Signal Circuit [06/2019 - 05/2023]: Wiring Diagram

GTY962588

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
