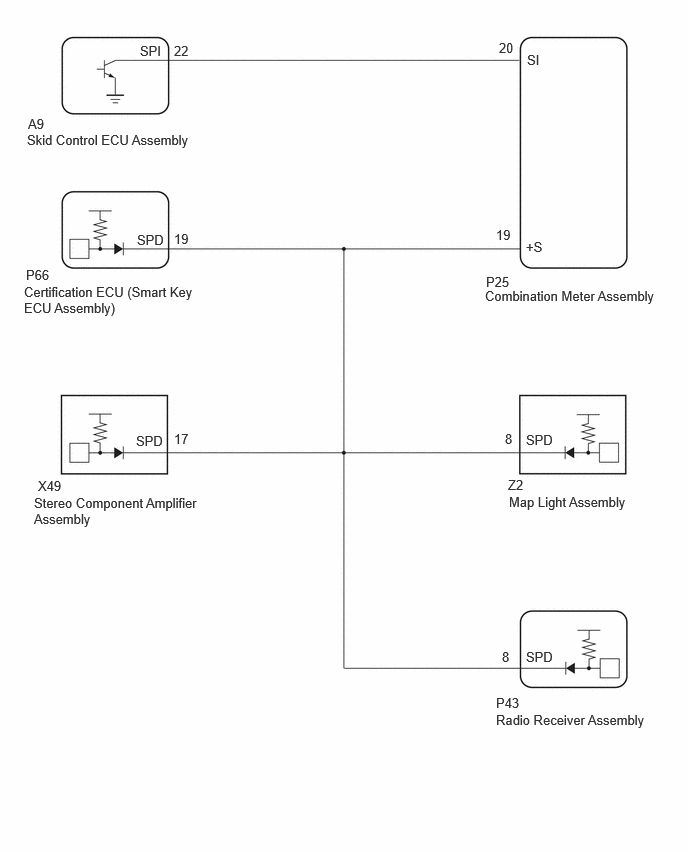

Speed Signal Circuit [05/2023 - ]: Wiring Diagram

GTY1241737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
