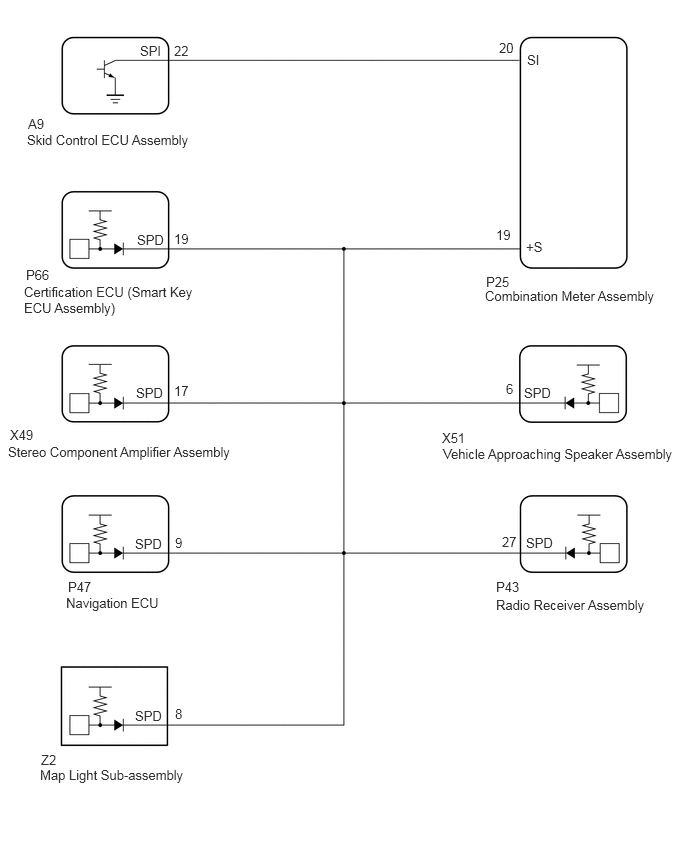

Speed Signal Circuit [01/2017 - 06/2019]: Wiring Diagram

GTY812696

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
