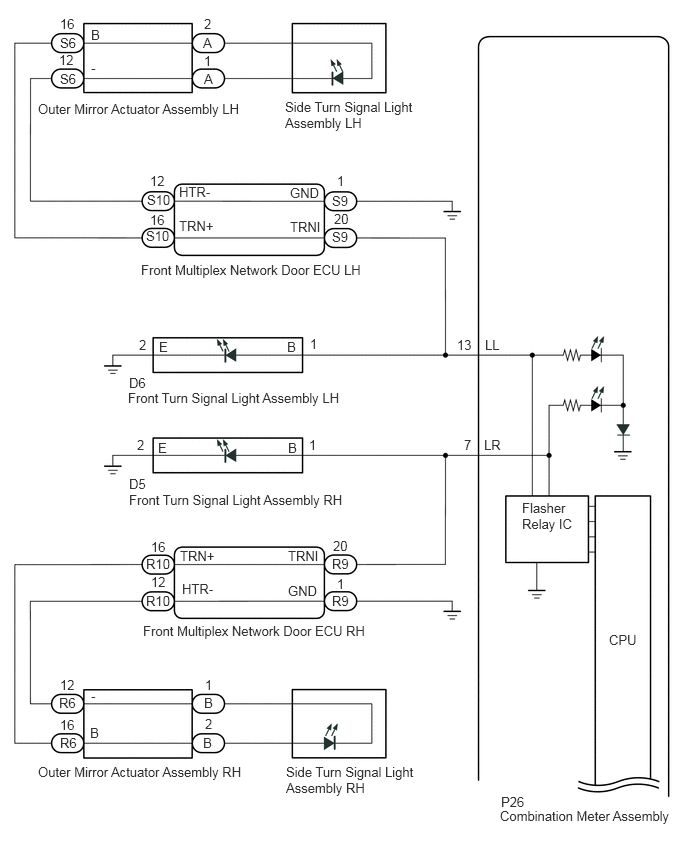

DTC B1507: Open in Turn Signal Circuit; DTC B1508: Short in Turn Signal / Hazard Flasher Circuit [01/2017 - 05/2023]: Wiring Diagram

GTY823266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY817262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
