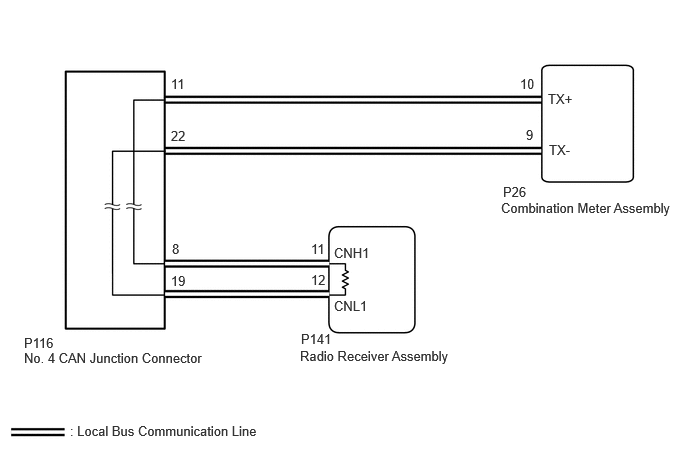

DTC B1321: Lost Communication with EMV [05/2023 - ]: Wiring Diagram

GTY1242493

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
