Inspection [01/2017 - ]: Procedure
- INSPECT TRIP SWITCH
- Check the resistance.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance

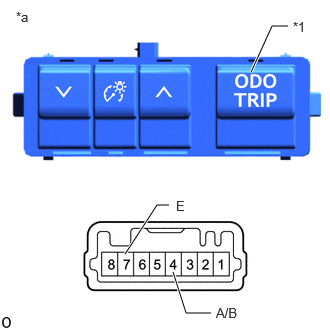

Tester Connection Switch Condition Specified Condition 4 (A/B) - 7 (E) ODO TRIP Switch pressed Below 1 Ω 4 (A/B) - 7 (E) ODO TRIP switch not pressed 10 kΩ or higher *1 ODO TRIP Switch *a Component without harness connected
(Trip Switch)If the result is not as specified, replace the trip switch.
- Measure the resistance according to the value(s) in the table below.
- Check illumination.
- Apply auxiliary battery voltage to the trip switch and check that it illuminates.
OK
Condition Specified Condition Auxiliary battery positive (+) → Terminal 3 (ILL+)
Auxiliary battery negative (-) → Terminal 8 (ILL-)Illuminates If the result is not as specified, replace the trip switch.
*a Component without harness connected
(Trip Switch)
- Apply auxiliary battery voltage to the trip switch and check that it illuminates.
- Check the resistance.
